Description

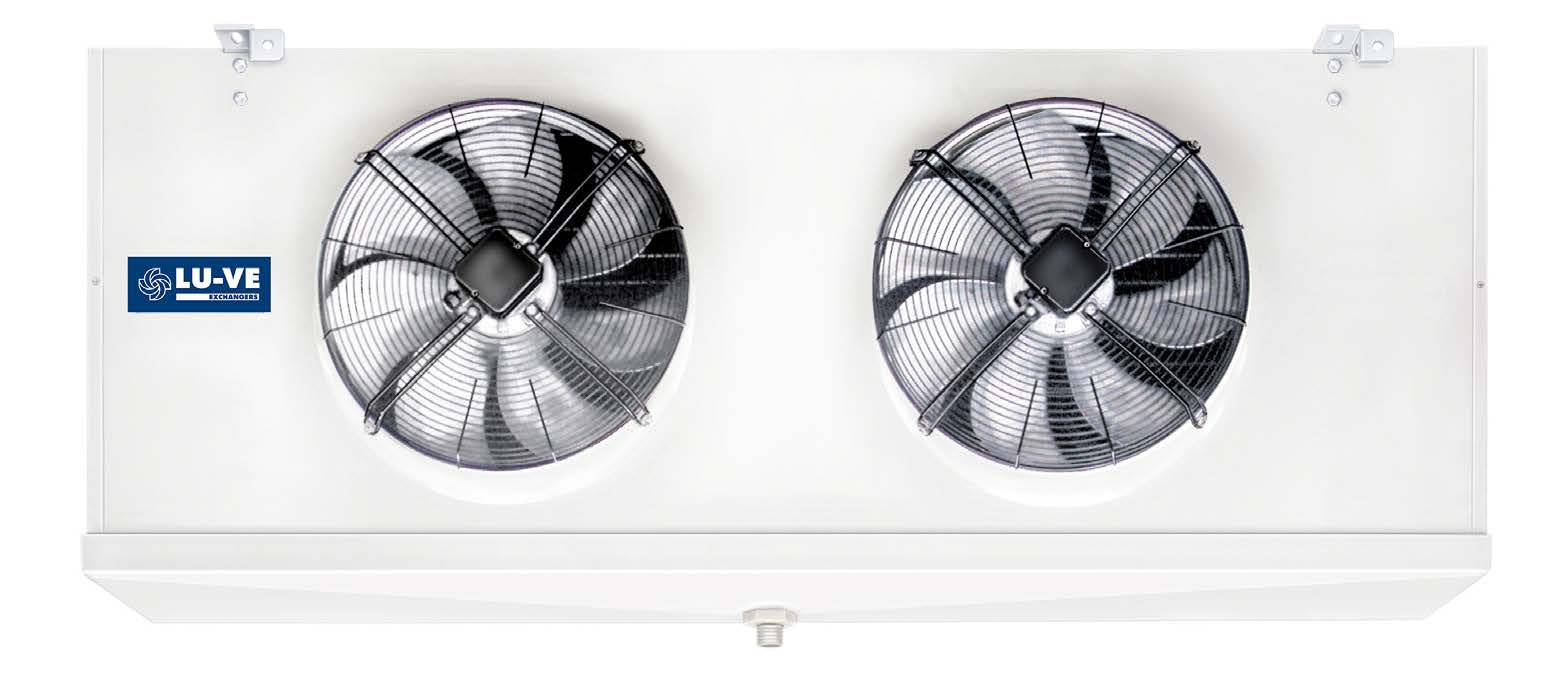

Lu-Ve FHC Low Temp 2 x 500mm Fan Evaporator
Product number:
F50HC 1806 E 7
| Fin Spacing : | 7.5 mm |
|---|---|
| Product Group : | HD Evap - LuVe Commercial |
| R404A Capacity @ -24SST/6KTD : | 13400 W |
| Temperature Application : | Low Temp |
General
| Product Group : | HD Evap - LuVe Commercial |
|---|
Air Volume/Air Flow
| Air Throw : | 42.0 m |
|---|
Coils
| Coil : | Fin and Tube |
|---|
Connections
| Drain Connection Size : | 1-1/4 in | Liquid Line Connection : | 1-1/8 in |
|---|---|---|---|
| Suction Line Connection : | 2-1/8 in |
Drain
| Drain Location : | Middle |
|---|
Electrical
| Electric Defrost : | Yes | Electrical Connection Location : | Right |
|---|
Evaporator
| Defrost Power : | 8400 W | Fin Spacing : | 7.5 mm |
|---|
Fan
| Fan Size : | 500 mm | Number Of Fans : | 2 |
|---|
Measurements
| Depth : | 655 mm | Height : | 875 mm |
|---|---|---|---|
| Length : | 2085 mm | Weight : | 160 kg |
Performance
| Performance Certification : | Eurovent |
|---|
Pressure
| Max Operating Pressure : | 24 Bar |
|---|
R404A Performances
| R404A Capacity @ -24SST/6KTD : | 13400 W |
|---|
R448A Performances
| R448A Capacity @ -24SST/6KTD : | 17100 W |
|---|
Temperature
| Temperature Application : | Low Temp |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| fhc-au-2022-ast-608025.pdf | Technical Literature | 989.88 KB |
