Description

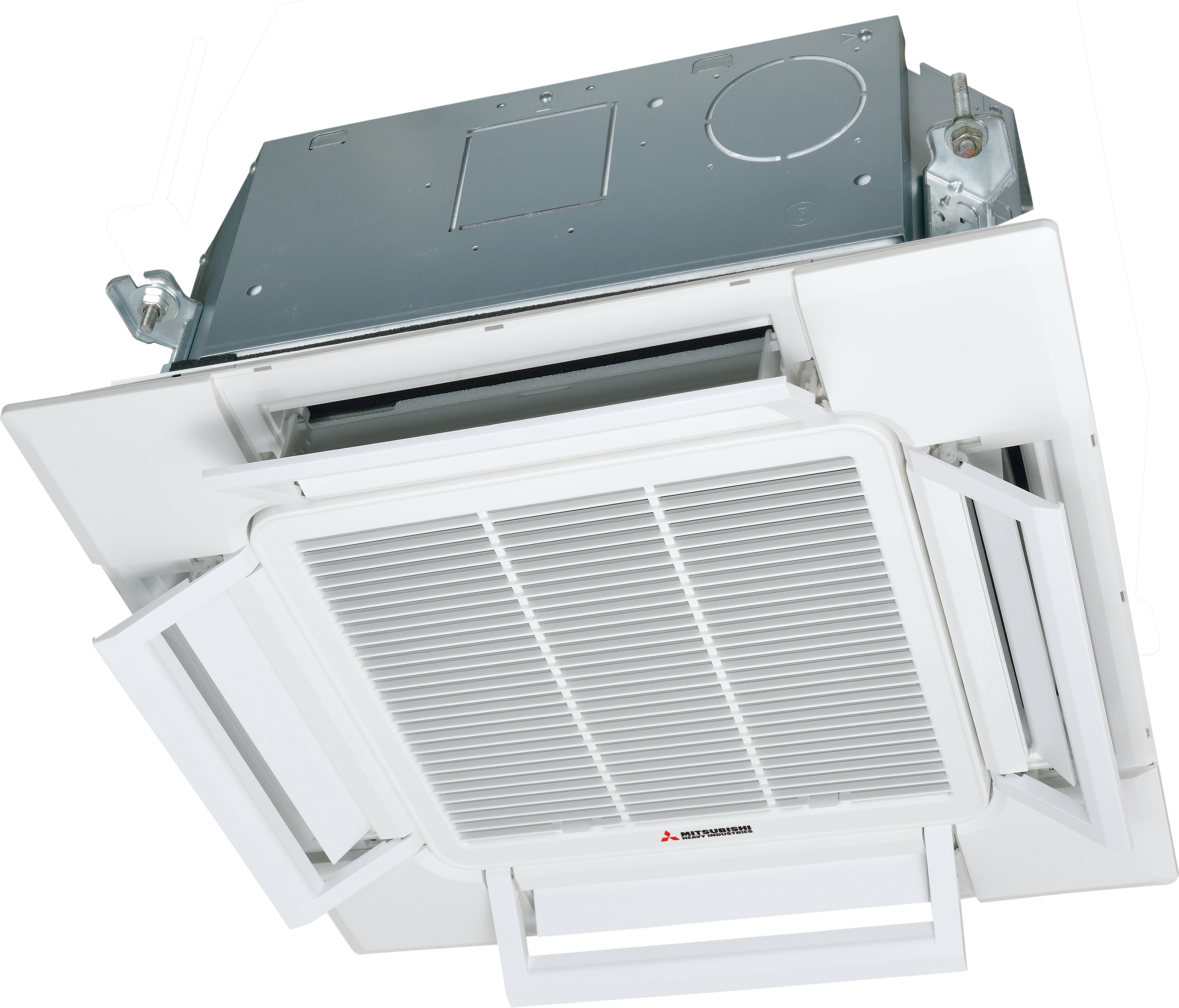

MHI FDTC Inverter 4-way Ceiling Cassette Set 5.0kW
Product number:
FDTC50ZMXAVF
| Cooling Capacity : | 5 kW |
|---|---|
| EER : | 3.21 |
| Heating Capacity : | 5.4 kW |
| Product Group : | Cassette Units - MHI |
| Refrigerant : | R410A |
General
| Product Group : | Cassette Units - MHI |
|---|
Additional Info
| Single Split / Multi Split : | single |
|---|
Air Volume/Air Flow
| Air Flow : | 217 m³/h |
|---|
Cooling Capacity
| Cooling Capacity : | 5 kW | Cooling Capacity (Min/Max) : | 2.2 / 5.6 kW |
|---|
Electrical
| Current (Cooling) : | 7 A | Current (Heating) : | 7.6 A |
|---|---|---|---|
| Input (Cooling) : | 1.56 kW | Input (Heating) : | 1.7 kW |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 3.18 | EER : | 3.21 |
|---|
General Information
| Model Number : | FDTC50ZMXAVF |
|---|
Heating Capacity
| Heating Capacity : | 5.4 kW | Heating Capacity Min/Max : | 0.6 / 6.3 kW |
|---|
Indoor Unit Attributes
| Depth (IU) : | 635 mm | Height (IU) : | 280 mm |
|---|---|---|---|
| Width (IU) : | 750 mm |
Outdoor Unit Attributes
| Depth (OU) : | 290 mm | Height (OU) : | 640 mm |
|---|---|---|---|
| Sound Pressure Level (OU) : | 50 dB(A) | Width (OU) : | 800 +71 mm |
Pipes
| Max Height Difference : | 20 m | Max Pipe Run : | 30 m |
|---|---|---|---|
| Pipe Dimension : | 1/2 in, 1/4 in, 6.35 mm, 12.70 mm |
Refrigerant
| Refrigerant : | R410A | Refrigerant Line Length (Oneway) : | 15 m |
|---|---|---|---|
| Refrigerant Pipe Size : | 1/4-1/2 in, 6.35-12.70 mm |
Sound Power/Pressure
| Sound Pressure Level Cooling (High/Medium/Low/Quiet) : | 37 / 32 / 29 / 26 dB(A) | Sound Pressure Level Cooling (Low/Medium/High) : | 26 / 29 / 32 / 37 dB(A) |
|---|---|---|---|
| Sound Pressure Level Heating (High/Medium/Low/Quiet) : | 37 / 32 / 29 / 26 dB(A) | Sound Pressure Level Heating (Low/Medium/High) : | 26 / 29 / 32 / 37 dB(A) |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| mhi-2020-ducted-brochure-en-ast-319470.pdf | Brochures | 7.22 MB |
