Description

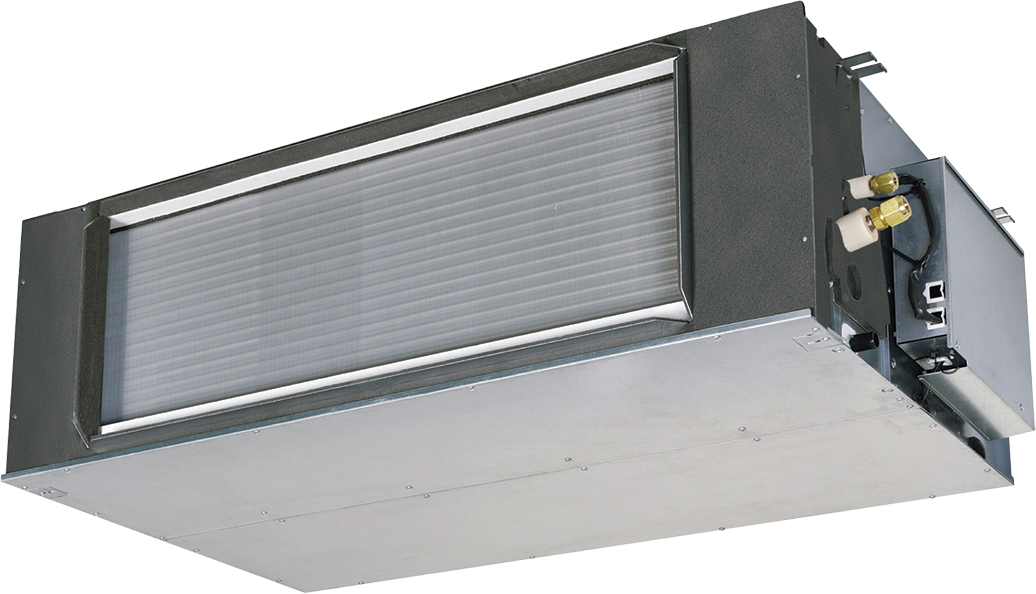

MHI FDUA 10.0Kw Ducted Set Rc R32 1Ph
Product number:
FDUA100VNPWVH
| Cooling Capacity : | 10 kW |
|---|---|
| EER : | 3.34 |
| Heating Capacity : | 10 kW |
| Product Group : | Ducted Systems - MHI |
| Refrigerant : | R32 |
General
| Product Group : | Ducted Systems - MHI |
|---|
Additional Info
| Single Split / Multi Split : | sINGLE |
|---|
Air Volume/Air Flow
| Air Flow : | 650 m³/h |
|---|
Cooling Capacity
| Cooling Capacity : | 10 kW | Cooling Capacity (Min/Max) : | 2.1 / 10.2 kW |
|---|
Electrical
| Current (Cooling) : | 13.2 A | Current (Heating) : | 11.4 A |
|---|---|---|---|
| Input (Cooling) : | 2.99 kW | Input (Heating) : | 2.57 kW |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 3.89 | EER : | 3.34 |
|---|
General Information
| Model Number : | FDUA100VNPWVH |
|---|
Heating Capacity
| Heating Capacity : | 10 kW | Heating Capacity Min/Max : | 1.7 / 10.4 kW |
|---|
Indoor Unit Attributes
| Depth (IU) : | 650 mm | Height (IU) : | 398 mm |
|---|---|---|---|
| Width (IU) : | 1150 mm |
Outdoor Unit Attributes
| Depth (OU) : | 340 mm | Height (OU) : | 750 mm |
|---|---|---|---|
| Sound Pressure Level (OU) : | 56 dB(A) | Width (OU) : | 880 +88 mm |
Pipes
| Max Height Difference : | 20 m | Max Pipe Run : | 30 m |
|---|---|---|---|
| Pipe Dimension : | 3/8 in, 5/8 in, 9.52 mm, 15.88 mm |
Refrigerant
| Refrigerant : | R32 | Refrigerant Line Length (Oneway) : | 30 m |
|---|---|---|---|
| Refrigerant Pipe Size : | 3/8-5/8 in, 9.52-15.88 mm |
Sound Power/Pressure
| Sound Pressure Level Cooling (High/Medium/Low/Quiet) : | 43 / 42 / 40 / 37 dB(A) | Sound Pressure Level Cooling (Low/Medium/High) : | 37 / 40 / 42 / 43 dB(A) |
|---|---|---|---|
| Sound Pressure Level Heating (High/Medium/Low/Quiet) : | 43 / 42 / 40 / 37 dB(A) | Sound Pressure Level Heating (Low/Medium/High) : | 37 / 40 / 42 / 43 dB(A) |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| mhi-ducted-systems-en-ast-319472.pdf | Brochures | 5.79 MB |
