Description

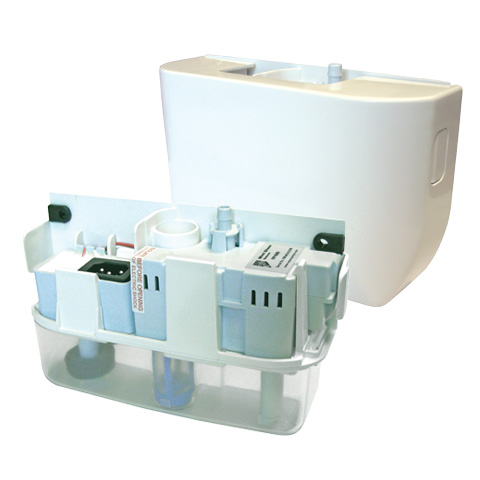

The ultra quick fit Mini Blanc is designed to be fitted beneath high wall indoor units and offers easy access for future maintenance.
Aspen Mini Blanc Pump (max) 12 L/hr
Product number:
FP1080
| Product Group : | Condensate Pumps |
|---|
General
| Product Group : | Condensate Pumps |
|---|
Condensate Pumps
| Max Discharge Head : | 10 m | Max Flow Rate : | 12 L/h |
|---|---|---|---|
| Max Water Temperature : | 40 °C | Tank Volume : | 0.24 L |
Electrical
| Amp : | 0.1 A | IP Class : | IP21 |
|---|---|---|---|
| Power Supply : | 230/1/50 V/Ph/Hz |
Features
| Thermal Protection : | Yes |
|---|
General Information
| Max Lift : | 10 m | Model Number : | FP1080 |
|---|
Measurements
| Depth : | 182 mm | Height : | 115 mm |
|---|---|---|---|
| Width : | 55 mm |
Pressure
| Water Flow Pressure : | 12 L/h |
|---|
Sound Power/Pressure
| Pump Sound Level In App : | 21 dB(A) | Sound Pressure Level : | 21 dB(A) |
|---|
Switch
| Safety Switch : | 3.0 A NC |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| mini-blanc-manual-2016-ast-332559.pdf | Installation Manual | 844.09 KB | |
| fp1080-mini-blanc-tech-sheet-2016-ast-332562.pdf | Technical Literature | 121.04 KB |
