Description
Operated by an air conditioning cooling signal, the Standard peristaltic sets the standard for reliability. The remote install options means minimum future maintenance disruption.

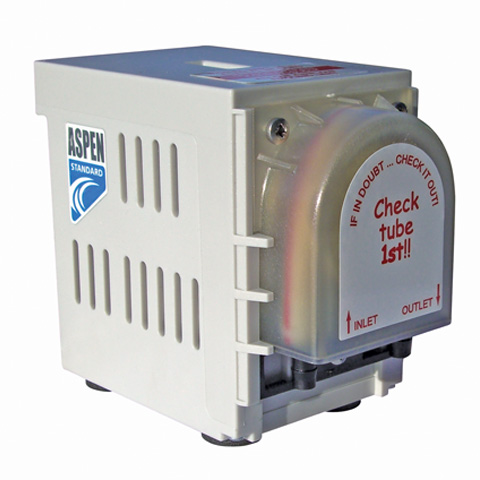

"Aspen Standard Pump"
Product number:
FP2081
| Product Group : | Condensate Pumps |
|---|
General
| Product Group : | Condensate Pumps |
|---|
Condensate Pumps
| Max Discharge Head : | 12 m | Max Flow Rate : | 6.5 L/h |
|---|
Connections
| Suction Connection Height : | 3 m |
|---|
Electrical
| IP Class : | IP21 | Power Supply : | 230 V |
|---|
Features
| Thermal Protection : | Yes |
|---|
General Information
| Max Lift : | 12 m | Model Number : | FP2081 |
|---|
Measurements
| Depth : | 135 mm | Height : | 115 mm |
|---|---|---|---|
| Width : | 77 mm |
Pressure
| Water Flow Pressure : | 6.5 L/h |
|---|
Sound Power/Pressure
| Pump Sound Level In App : | 47 dB(A) | Sound Pressure Level : | 47 dB(A) |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| fp2081-standard-peristaltic-ast-332565.pdf | Technical Literature | 107.16 KB |
