Description
The top selling Universal is operated by two air temperature sensors. The peristaltic rotary movement creates a continuous pressure meaning the pump can be sited up to 3m away from the source with no effect in performance.

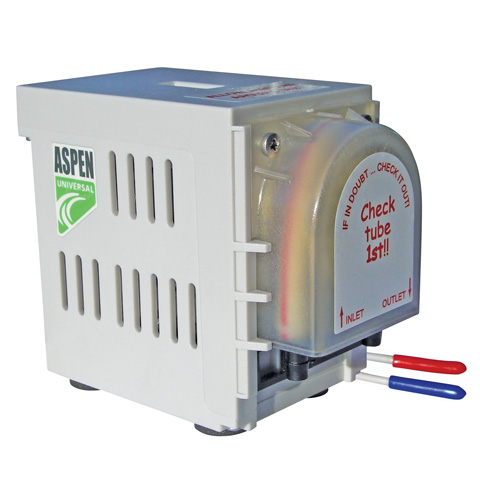

"Aspen Universal Pump"
Product number:
FP2082
| Product Group : | Condensate Pumps |
|---|
General
| Product Group : | Condensate Pumps |
|---|
Condensate Pumps
| Max Discharge Head : | 12 m | Max Flow Rate : | 6.5 L/h |
|---|---|---|---|
| Max Suction Head : | 3 m |
Connections
| Suction Connection Height : | 3 m |
|---|
Electrical
| IP Class : | IP21 | Power Supply : | 230 V |
|---|
General Information
| Max Lift : | 12 m | Model Number : | FP2082 |
|---|
Measurements
| Depth : | 135 mm | Height : | 115 mm |
|---|---|---|---|
| Width : | 77 mm |
Pressure
| Water Flow Pressure : | 6.5 L/h |
|---|
Sound Power/Pressure
| Pump Sound Level In App : | 47 dB(A) | Sound Pressure Level : | 47 dB(A) |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| fp2082-universal-peristaltic-ast-332566.pdf | Technical Literature | 119.6 KB |
