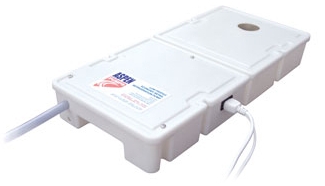

Designed exclusively to fit underneath retail refrigeration cabinets the lightweight plastic ERRP (Economical Retail Refrigeration Pump) allows for the removal of defrost and contaminated water.
"Economy Retail Refig Pump LPSE"
Product number:
FP2805
| Product Group : | Condensate Pumps |
|---|
General
| Product Group : | Condensate Pumps |
|---|
Condensate Pumps
| Flow Rate at 0 m : | 190 L/h | Max Discharge Head : | 21 m |
|---|---|---|---|
| Max Flow Rate : | 190 L/h | Max Water Temperature : | 40 °C |
| Tank Volume : | 3.5 L |
Electrical
| Current : | 0.2 A | IP Class : | IP24 |
|---|---|---|---|
| Power Consumption : | 30 W | Power Supply : | 230/1/50-60 V/Ph/Hz |
| Voltage : | 230 V |
Features
| Thermal Protection : | Yes |
|---|
General Information
| Max Lift : | 21 m | Model Number : | FB2805 |
|---|---|---|---|
| Type : | Condensate water pump |
Logistical Information
| Commodity Code : | 84138100 | Country Of Origin : | DEU |
|---|
Measurements
| Depth : | 530 mm | Height : | 75 mm |
|---|---|---|---|
| Width : | 240 mm |
Pressure
| Water Flow Pressure : | 190 L/h |
|---|
Sound Power/Pressure
| Pump Sound Level In App : | 60 dB(A) | Sound Pressure Level : | 60 dB(A) |
|---|
Switch
| Safety Switch : | 3.0 A NC |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| fp2597-fp2805-errp-low-profile-pump-ast-332570.pdf | Technical Literature | 108.92 KB | |
| aspen-product-sheet-condensate-removal-pump-errp-slimline-fp2805-en-ast-1856956.pdf | Data Book | 621.55 KB | |
| aspen-data-sheet-slimline-kyldiskpump-en-ast-1972645.pdf | Data Book | 525.51 KB |
