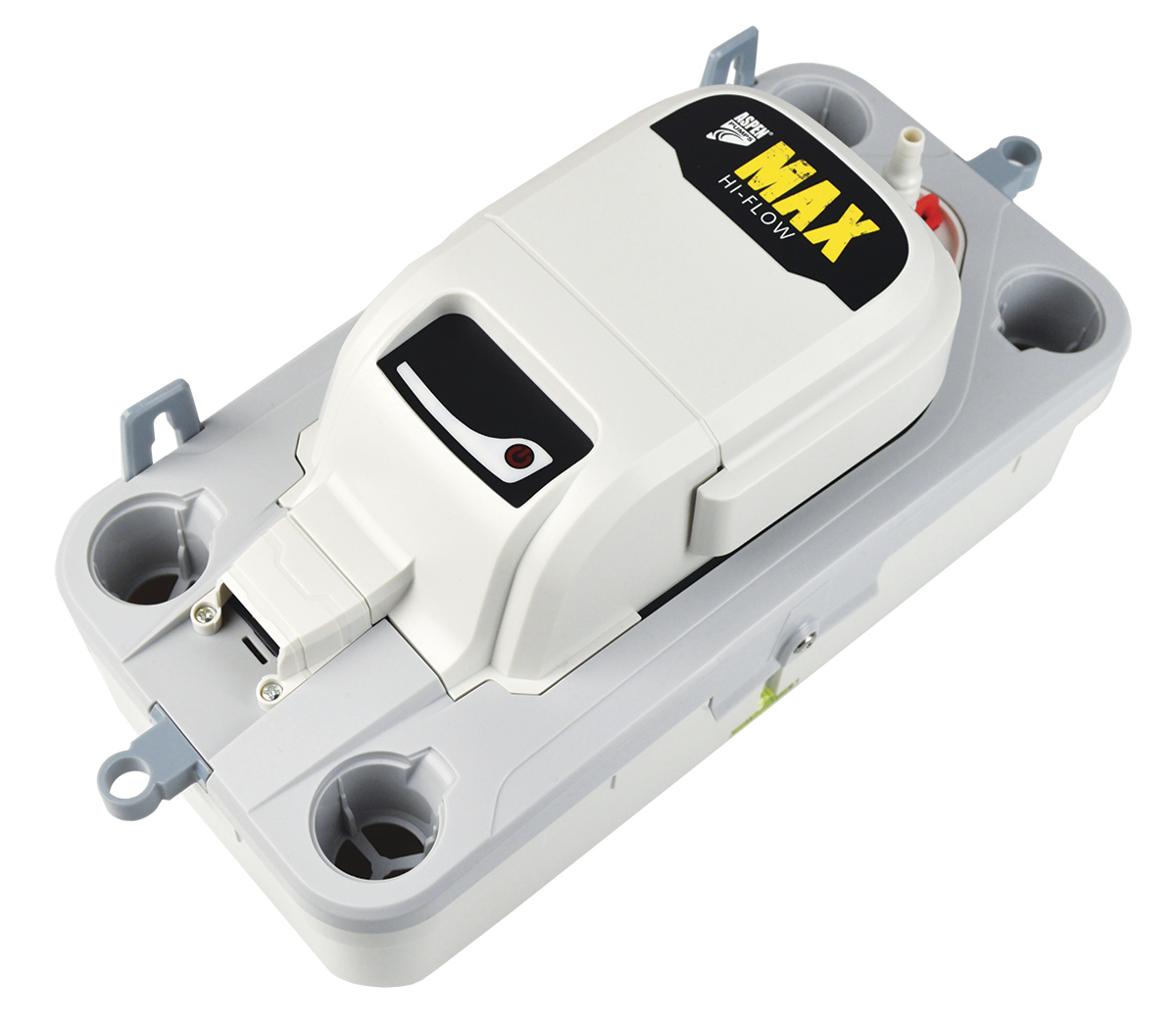

Aspen Max Hi-Flow Pump
Item Number:
FP3349
| Power Supply : | 230/1/50 V/Ph/Hz |
|---|---|
| Product Group : | Condensate Pumps |
General Information
| Max Lift : | 5 m |
|---|---|
| Maximum Head : | 5 m |
| Model Number : | FP3349 |
| Product Group : | Condensate Pumps |
| Safety Switch : | 3 A NC |
| Thermal Protection : | Yes |
| Type : | Condensate water pump |
Condensate Pumps
| Flow Rate at 0 m : | 550 L/h |
|---|---|
| Max Discharge Head : | 5 m |
| Max Flow Rate : | 550 L/h |
| Max Water Temperature : | 40 °C |
| Tank Volume : | 1.7 L |
Connections
| Inlet Connection Size : | x4 21-27 mm |
|---|---|
| Outlet Connection Size : | 6 & 10 mm |
Electrical
| Current : | 0.8 A |
|---|---|
| IP Class : | IP24 |
| Power Supply : | 230/1/50 V/Ph/Hz |
Measurements
| Depth : | 285 mm |
|---|---|
| Height : | 134 mm |
| Width : | 144 mm |
Pressure
| Water Flow Pressure : | 550 L/h |
|---|
Sound Power/Pressure
| Pump Sound Level In App : | 44 dB(A) |
|---|---|
| Sound Pressure Level : | 44 dB(A) |
Product information
The best-in-class Max Hi-Flow tank pump carries on the Aspen Pumps tradition of build quality & high performance. With the lowest dB(A) rating & best IP rating (IP24 splash proof) of any tank pump, the Max Hi-Flow is the quietest & safest pump in its class.
