Description

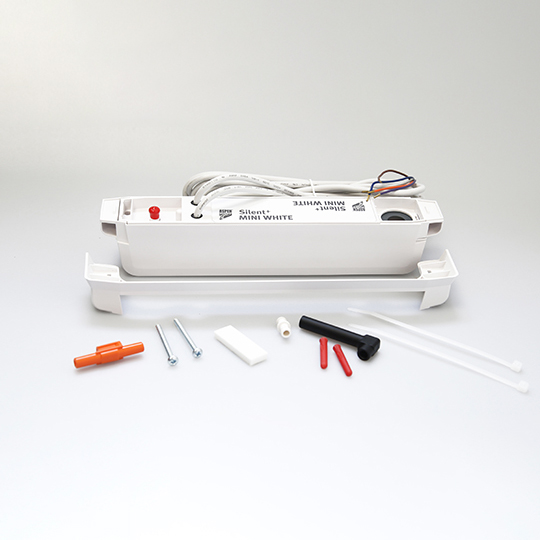

Mini White Silent Condensate Pump
Product number:
FP3450
| Product Group : | Condensate Pumps |
|---|
General
| Product Group : | Condensate Pumps |
|---|
Capacity
| Capacity : | 16 kW |
|---|
Condensate Pumps
| Flow Rate at 0 m : | 45 L/h | Flow Rate at 10 m : | 23 L/h |
|---|---|---|---|
| Max Discharge Head : | 10 m | Max Flow Rate : | 45 L/h |
Connections
| Inlet Connection Size : | 16-26 mm | Outlet Connection Size : | 6 mm |
|---|
Electrical
| Amp : | 0.18 A | Frequency : | 50/60 Hz |
|---|---|---|---|
| IP Class : | IP24 | Voltage : | 230 VAC, 0.18A, 2.1W 50/60 Hz |
General Information
| Colour : | White | Max Water Flow : | 45 L/h |
|---|---|---|---|
| Pump Capacity : | 45 L/h |
Logistical Information
| Commodity Code : | 84138100 | Country Of Origin : | CHN |
|---|---|---|---|
| HS Code : | FP3450 |
Sound Power/Pressure
| Sound Power Level : | 16 dB(A) | Sound Pressure Level @ 1 Meters : | 16 dB(A) |
|---|
