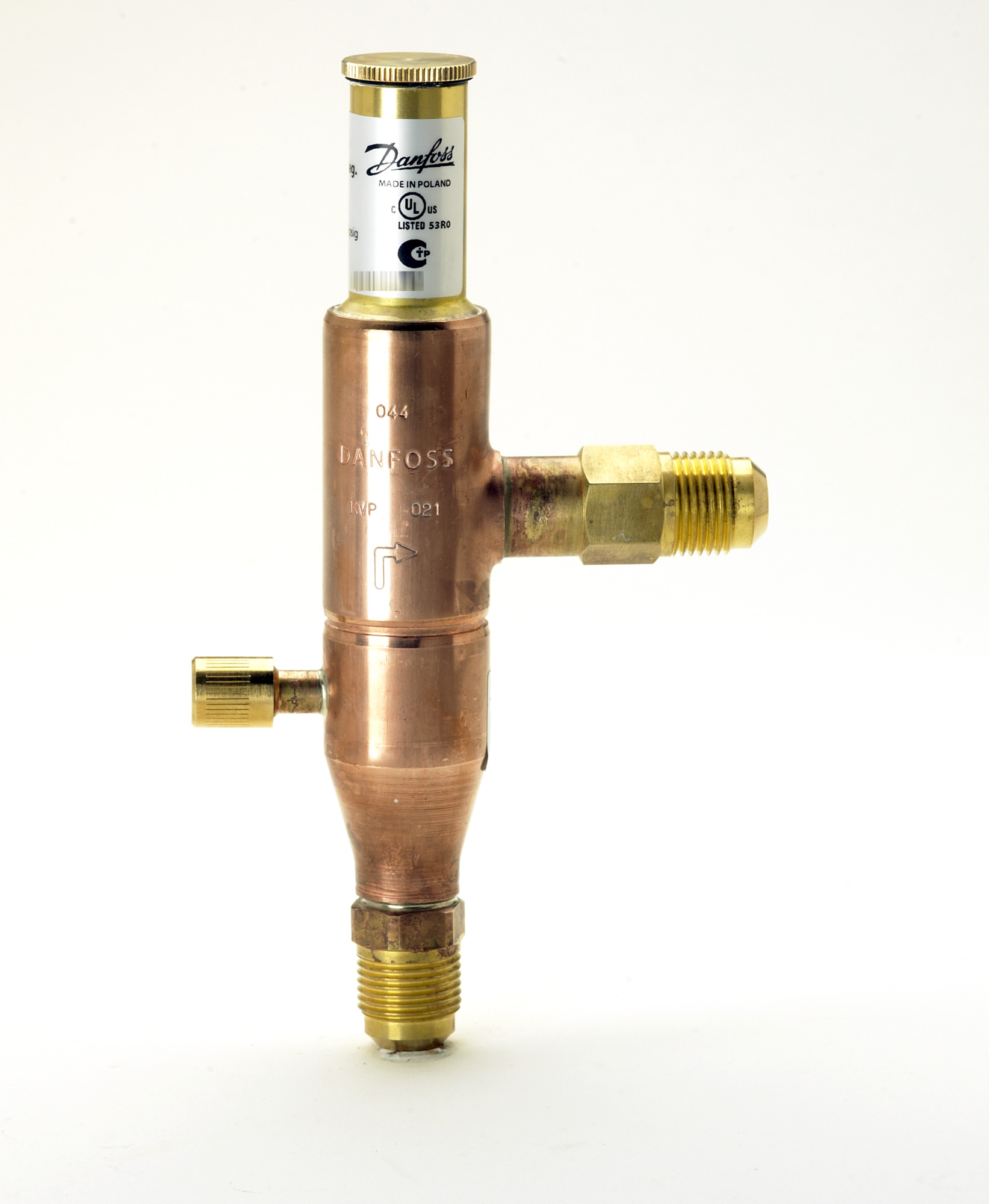

"Danfoss - KVP15 EPR Valve 5/8" Flare (0-80psi)"
Item Number:
G0552
| Max Operating Pressure : | 18.0 Bar |
|---|---|
| Product Group : | Pressure Reg - Danfoss |
| Refrigerant : | R22, R134a, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A, R1234yf, R1234ze(E) |
General Information
| Approval : | C UL US LISTED, EAC, LLC CDC TYSK |
|---|---|
| CV Value : | 2.900 gal/min |
| Equipment : | Schrader valve access port |
| Product Group : | Pressure Reg - Danfoss |
| Type : | KVP 15 |
Additional Info
| Additional Info : | Max. extern.bellow press.26bar |
|---|---|
| Family : | KVP |
Capacity R134a
| R134a Capacity : | 2.80 kW |
|---|
Capacity R22
| R22 Capacity : | 4.00 kW |
|---|
Capacity R407C
| R407C Capacity : | 3.70 kW |
|---|
Connections
| Inlet Connection Size : | 5/8 in, 16.00 mm |
|---|---|
| Inlet Type : | Flare |
| Outlet Connection Size : | 5/8 in, 16.00 mm |
| Outlet Type : | Flare |
Kv Values
| Kv Value : | 2.500 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818059 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702428411875 |
| Gross Weight : | 0.468 kg |
Measurements
| Weight : | 0.42 kg |
|---|
Pressure
| Max Operating Pressure : | 18.0 Bar |
|---|---|
| Regulating Range : | 0.0-5.5 Bar |
Refrigerant
| Refrigerant : | R22, R134a, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A, R1234yf, R1234ze(E) |
|---|
Temperature
| Factory Setting : | 2.00 Bar |
|---|---|
| Medium Temperature Range : | -45-130 °C |
Valves
| Flow Direction Indicator : | Engraved 1-way arrow |
|---|
Product information
The KVP is mounted in the suction line after the evaporator and is used to:
- Maintain a constant evaporating pressure and thereby a constant surface temperature on the evaporator. The regulation is modulating. By throttling in the suction line, the amount of refrigerant gas is matched to the evaporator load.
- Protect against an evaporating pressure that is too low (e.g. as protection against freezing in a water chiller). The regulator closes when the pressure in the evaporator falls below the set value.
- Differentiate between the evaporating pressures in two or more evaporators in systems with one compressor
