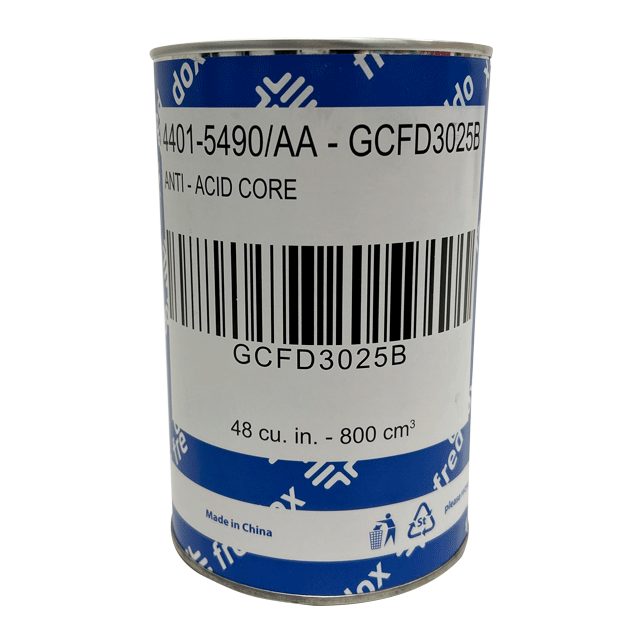

Freddox 48CI Fiter Drier Core (High Capacity) w/Gasket
Item Number:
GCFD3025B
| Material : | 80% Molecular sieve, 20% Activated aluminum oxide |
|---|---|
| Product Group : | Driers - Freddox |
| Refrigerant : | HCFC/HFC, HFO |
General Information
| Activated Alumina / Molec. Sieve. : | 80/20 % |
|---|---|
| Product Group : | Driers - Freddox |
Additional Info
| Additional Info : | Moisture and Acid Absorption (80%MS / 20% AA) |
|---|
Capacity R134a
| R134a Water Capacity 52°C : | 71 g |
|---|
Capacity R404A
| R404A Water Capacity 52°C : | 78 g |
|---|
Capacity R407C
| R407C Water Capacity 52°C : | 54 g |
|---|
Driers
| Core Size : | 48 cu. in. |
|---|---|
| Solid Core Surface : | 420 cm² |
Material
| Material : | 80% Molecular sieve, 20% Activated aluminum oxide |
|---|
Measurements
| Height : | 140 mm |
|---|---|
| Net Weight : | 0.73 kg |
| Width : | 96 mm |
Refrigerant
| Refrigerant : | HCFC/HFC, HFO |
|---|
Product information
Solid core 80% molecular sieve/20% Active alumina Size 48 for servicing Refrigeration system equipped with filter drier shell . Including universal gaskets
