Description

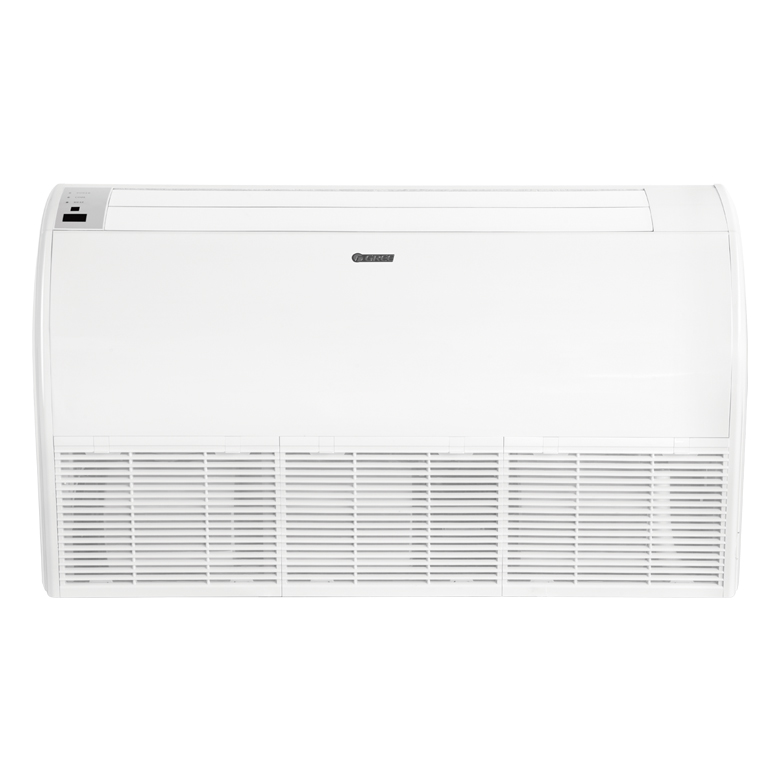

Gree U-Match 10kW Indoor Floor/Ceiling R32 3/8 x 5/8
Product number:
GUD100ZD/B-S
| Cooling Capacity : | 10.1 kW |
|---|---|
| Heating Capacity : | 12.0 kW |
| Indoor/ Outdoor/ Other : | Indoor |
| Pre-Equipped Wifi : | Yes |
| Product Group : | Ceiling Suspended - Gree |
| Refrigerant : | R32 |
General
| Product Group : | Ceiling Suspended - Gree |
|---|
Additional Info
| Indoor/ Outdoor/ Other : | Indoor | Single Split / Multi Split : | Single Split |
|---|
Air Volume/Air Flow
| Air Flow : | 1700 m³/h |
|---|
Connections
| Drain Connection Size : | 17 mm | Pipe Diameter Gas Side : | 15.88 mm |
|---|---|---|---|
| Pipe Diameter Liquid Side : | 9.52 mm |
Connectivity
| Pre-Equipped Wifi : | Yes |
|---|
Cooling Capacity
| Cooling Capacity : | 10.1 kW | Cooling Capacity (Min/Max) : | 3.2/11.0 kW |
|---|---|---|---|
| Cooling Capacity (Min/Rated/Max) : | 3.2/10.1/11.0 kW |
Electrical
| Input (Cooling) : | 3.0 kW | Input (Heating) : | 3.5 kW |
|---|---|---|---|
| Power Input (Heating/Cooling) : | 3.5/3.0 kW | Power Supply : | 230/1/50 V/Ph/Hz |
| Recommended Fuse : | 32 |
General Information
| Condensate Water Pump Provided : | No | Remote Control : | Yes |
|---|---|---|---|
| Remote Control Provided : | Yes |
Heating Capacity
| Heating Capacity : | 12.0 kW | Heating Capacity (Min/Rated/Max) : | 3.0/12.0/13.5 kW |
|---|---|---|---|
| Heating Capacity Min/Max : | 3.0/13.5 kW |
Indoor Unit Attributes
| Depth (IU) : | 235 mm | Height (IU) : | 665 mm |
|---|---|---|---|
| Net Weight (IU) : | 33 kg | Weight (IU) : | 33 kg |
| Width (IU) : | 1200 mm |
Measurements
| Depth : | 235 mm | Height : | 665 mm |
|---|---|---|---|
| Weight : | 33 kg | Width : | 1200 mm |
Pipes
| Max Height Difference : | 30 m | Max Pipe Length Without Additional Refrigerant : | 20 m |
|---|---|---|---|
| Max Pipe Run : | 65 m | Pipe Dimension : | 9.52 x 15.88 mm |
R32 Performances Cooling
| R32 Cooling Capacity Max : | 11.0 kW | R32 Cooling Capacity Min : | 3.2 kW |
|---|---|---|---|
| R32 Cooling Capacity Rated : | 10.1 kW | R32 SEER : | 3.43 |
R32 Performances Heating
| R32 Heating Capacity Max : | 13.5 kW | R32 Heating Capacity Min : | 3.0 kW |
|---|---|---|---|
| R32 Heating Capacity Rated : | 12.0 kW | R32 Power Input Rated Cooling : | 3.0 kW |
| R32 Power Input Rated Heating : | 3.5 kW | R32 SCOP : | 3.37 |
Refrigerant
| Additional Charge : | 25 g/m | Refrigerant : | R32 |
|---|---|---|---|
| Refrigerant Charge : | 3.02 kg | Refrigerant Pipe Size : | 9.52x15.88 mm |
Sound Power/Pressure
| Sound Pressure Level Cooling (High/Medium/Low/Quiet) : | 44/47/50/52 dB(A) |
|---|
Temperature
| Temperature Range Cooling : | -15~52 °C | Temperature Range Heating : | -15~24 °C |
|---|
