Description

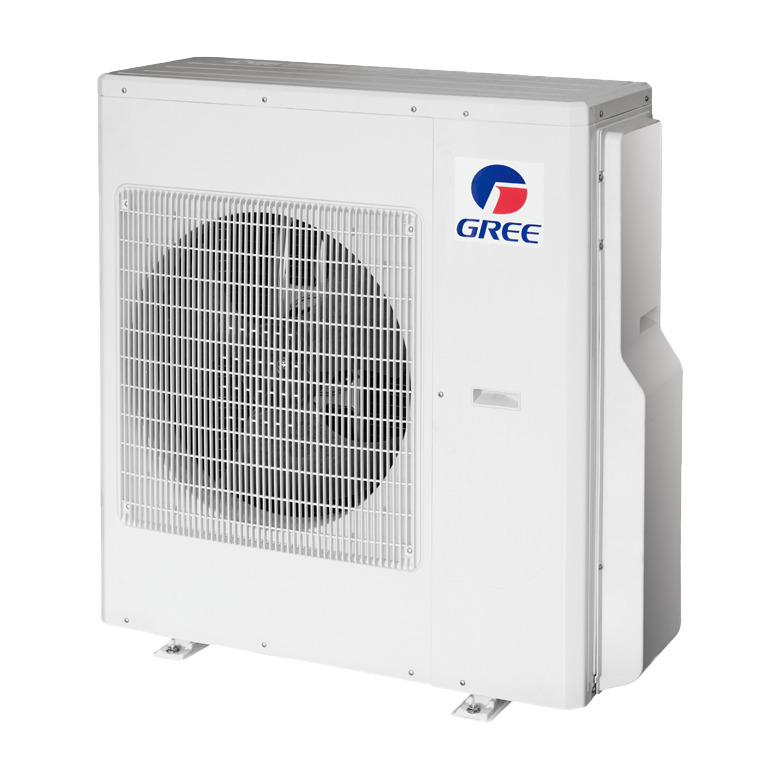

Gree U-Match 14kW Outdoor R32 3/8 x 5/8
Product number:
GUD140W/NhB-S
| Cooling Capacity : | 13.8 kW |
|---|---|
| Heating Capacity : | 16 kW |
| Indoor/ Outdoor/ Other : | Outdoor |
| Pre-Equipped Wifi : | Yes |
| Product Group : | Ducted Systems - Gree |
| Refrigerant : | R32 |
| Voltage : | 230 V |
General
| Product Group : | Ducted Systems - Gree |
|---|
Additional Info
| Indoor/ Outdoor/ Other : | Outdoor | Indoor Units Connectable (Quantity) : | 1 |
|---|---|---|---|
| Single Split / Multi Split : | Single Split |
Connections
| Liquid Line Connection : | 9.5 mm | Pipe Diameter Gas Side : | 15.88 mm |
|---|---|---|---|
| Pipe Diameter Liquid Side : | 9.5 mm |
Connectivity
| Pre-Equipped Wifi : | Yes |
|---|
Cooling Capacity
| Cooling Capacity : | 13.8 kW | Cooling Capacity (Min/Rated/Max) : | 6.8/13.8/16 kW |
|---|
Electrical
| Input (Cooling) : | 4.3 kW | Input (Heating) : | 4.35 kW |
|---|---|---|---|
| Power Consumption Cooling : | 4.3 kW | Power Consumption Heating : | 4.35 kW |
| Power Input (Heating/Cooling) : | 4.3/4.35 kW | Power Supply : | 230/1/50 V/Ph/Hz |
| Recommended Fuse : | 40 | Voltage : | 230 V |
| Voltage 50Hz : | 230 V |
Energy Efficiency/Performance
| SCOP : | 3.68 | SEER : | 3.21 |
|---|
Heating Capacity
| Heating Capacity : | 16 kW | Heating Capacity (Min/Rated/Max) : | 4.5/16/17 kW |
|---|
Measurements
| Depth : | 340 mm | Height : | 1350 mm |
|---|---|---|---|
| Weight : | 106 kg | Width : | 900 mm |
Pipes
| Max Height Difference : | 30 m | Max Pipe Length Without Additional Refrigerant : | 20 m |
|---|---|---|---|
| Max Piping Length : | 75 m | Pipe Dimension : | 9.5x 15.88 mm |
R32 Performances Cooling
| R32 Cooling Capacity Max : | 16 kW | R32 Cooling Capacity Min : | 6.8 kW |
|---|---|---|---|
| R32 Cooling Capacity Rated : | 13.8 kW |
R32 Performances Heating
| R32 Power Input Rated Cooling : | 4.3 kW |
|---|
Refrigerant
| Additional Charge : | 35 g/m | Additional Gas Amount : | 35 g/m |
|---|---|---|---|
| Refrigerant : | R32 | Refrigerant Charge : | 4.1 kg |
| Refrigerant Pipe Size : | 9.5x15.88 mm | Refrigerant precharged up to : | 20 m |
Sound Power/Pressure
| Sound Power Level : | 69 dB(A) |
|---|
Temperature
| Temperature Range Cooling : | -15~52 °C | Temperature Range Heating : | -15~24 °C |
|---|
