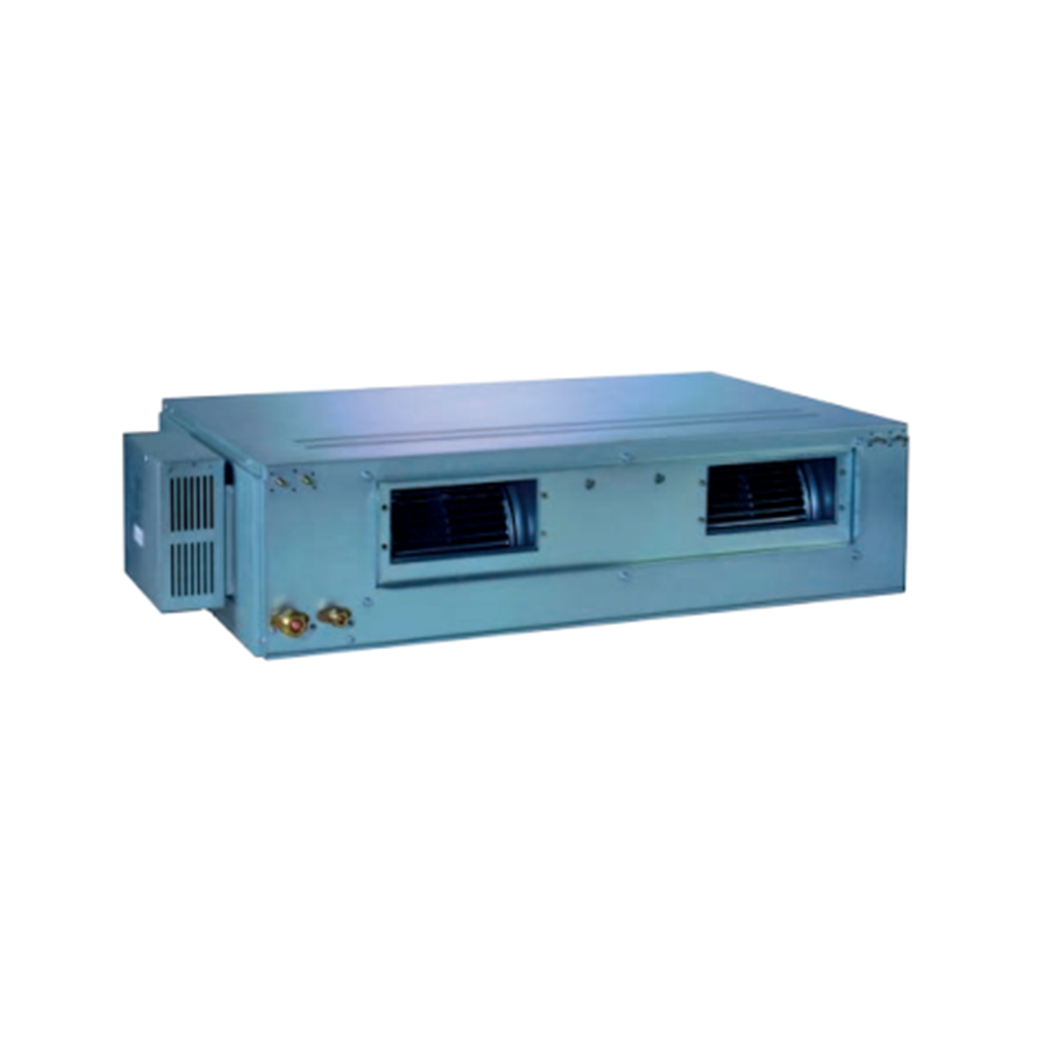

Gree U-Match 5kW Indoor Ducted R32 1/4 x 1/2
Item Number:
GUD50PS/B-S
| Cooling Capacity : | 5.3 kW |
|---|---|
| Heating Capacity : | 5.8 kW |
| Indoor/ Outdoor/ Other : | Indoor |
| Power Supply : | 230/1/50 V/Ph/Hz |
| Pre Equiped Wifi : | Yes |
| Product Group : | Ducted Systems - Gree |
| Refrigerant : | R32 |
| Voltage : | 230 V |
General Information
| Condensate Water Pump Provided : | Yes |
|---|---|
| Drain Pump Height : | 1000 mm |
| Pre Equiped Wifi : | Yes |
| Product Group : | Ducted Systems - Gree |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor |
|---|---|
| Single Split / Multi Split : | Single Split |
Air Volume/Air Flow
| Air Flow : | 1102 m³/h |
|---|
Capacity
| Cooling Capacity : | 5.3 kW |
|---|---|
| Cooling Capacity (Min/Rated/Max) : | 2.0/5.3/6.0 kW |
| Heating Capacity : | 5.8 kW |
| Heating Capacity (Min/Rated/Max) : | 2.0/5.3/6.9 kW |
Connections
| Drain Connection Size : | 20 mm |
|---|---|
| Liquid Line Connection : | 6.35 mm |
| Pipe Diameter Gas Side : | 12.50 mm |
| Pipe Diameter Liquid Side : | 6.35 mm |
Electrical
| Power Consumption Cooling : | 1.32 kW |
|---|---|
| Power Consumption Heating : | 1.41 kW |
| Power Supply : | 230/1/50 V/Ph/Hz |
| Recommended Fuse : | 16 |
| Voltage : | 230 V |
| Voltage 50Hz : | 230 V |
Energy Efficiency/Performance
| R32 SCOP : | 4.06 |
|---|---|
| R32 SEER : | 3.99 |
Heating Capacity R32
| R32 Heating Capacity Max : | 6.9 kW |
|---|---|
| R32 Heating Capacity Min : | 2.0 kW |
| R32 Heating Capacity Rated : | 5.3 kW |
Indoor Unit Attributes
| Net Weight (IU) : | 26 kg |
|---|
Measurements
| Depth : | 450 mm |
|---|---|
| Height : | 200 mm |
| Net Weight : | 26 kg |
| Weight : | 26 kg |
| Width : | 1000 mm |
Pipes
| Max Height Difference : | 20 m |
|---|---|
| Max Piping Length : | 35 m |
| Pipe Dimension : | 6.35 x 12.50 mm |
Power Input R32
| R32 Power Input Rated Cooling : | 1.32 kW |
|---|---|
| R32 Power Input Rated Heating : | 1.41 kW |
Pressure
| External Static Pressure : | 25 Pa |
|---|
Refrigerant
| Refrigerant : | R32 |
|---|---|
| Refrigerant Charge : | 1.32 kg |
| Refrigerant Pipe Size : | 6.35x12.50 mm |
Sound Power/Pressure
| Sound Power Level : | 61 dB(A) |
|---|---|
| Sound Pressure Level : | 37 dB(A) |
| Sound Pressure Level (Low/Medium/High/Quiet) : | 37/38/40 dB(A) |
