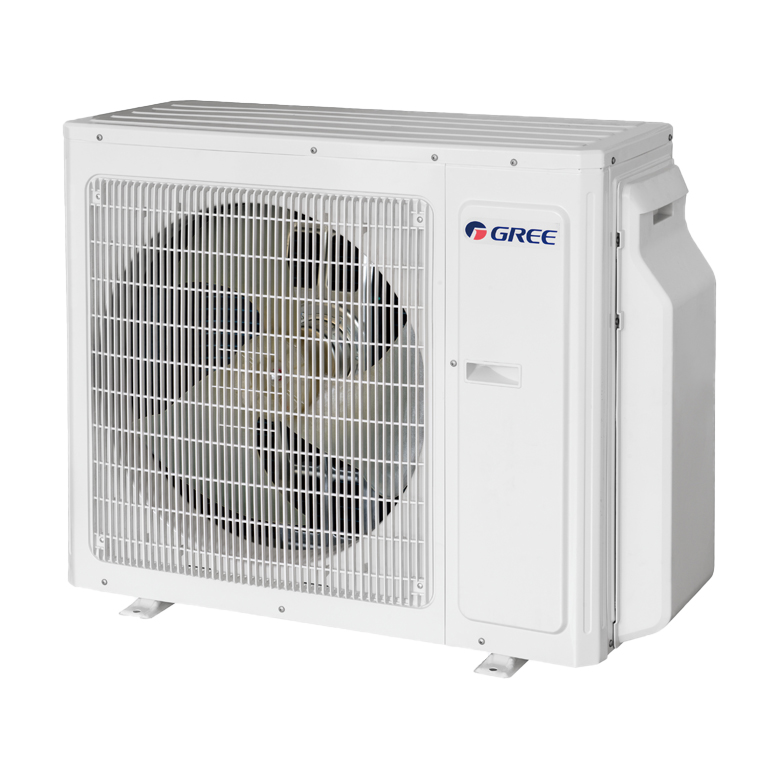

Gree Inv Pular R32 8.5kW Wall Split OD 1/4 x 5/8
Item Number:
GWH28AGEXH-K6DNA1A/O
| COP : | 3.37 |
|---|---|
| Cooling Capacity : | 8.5 kW |
| EER : | 3.67 |
| Heating Capacity : | 9.0 kW |
| Indoor/ Outdoor/ Other : | Outdoor |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
| Product Group : | Hi-wall - Gree Lomo / Pular |
| Refrigerant : | R32 |
| Voltage : | 230 V |
General Information
| Product Group : | Hi-wall - Gree Lomo / Pular |
|---|
Additional Info
| Indoor/ Outdoor/ Other : | Outdoor |
|---|---|
| Indoor Units Connectable (Quantity) : | 1 |
| Single Split / Multi Split : | Single Split |
Capacity
| Cooling Capacity : | 8.5 kW |
|---|---|
| Cooling Capacity (Min/Rated/Max) : | 1.6/8.5/10.25 kW |
| Heating Capacity : | 9.0 kW |
| Heating Capacity (Min/Rated/Max) : | 2.7/9.0/11.3 kW |
Compressor
| Compressor Type : | Rotary |
|---|
Connections
| Liquid Line Connection : | 6.35 mm |
|---|---|
| Pipe Diameter Gas Side : | 15.8 mm |
| Pipe Diameter Liquid Side : | 6.35 mm |
Cooling Capacity R32
| R32 Cooling Capacity Max : | 10.25 kW |
|---|---|
| R32 Cooling Capacity Min : | 1.6 kW |
| R32 Cooling Capacity Rated : | 8.5 kW |
Electrical
| Input (Cooling) : | 2.3 kW |
|---|---|
| Input (Heating) : | 2.65 kW |
| Max Current : | 11.95 A |
| Power Consumption Cooling : | 2.30 kW |
| Power Consumption Heating : | 2.65 kW |
| Power Input (Heating/Cooling) : | 2.3/2.65 kW |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
| Recommended Fuse : | 25 A |
| Voltage : | 230 V |
| Voltage 50Hz : | 230 V |
Energy Efficiency/Performance
| COP : | 3.37 |
|---|---|
| EER : | 3.67 |
| SCOP : | 3.37 |
| SEER : | 3.67 |
Fan
| Number Of Fans : | 1 |
|---|
Measurements
| Depth : | 427 mm |
|---|---|
| Height : | 746 mm |
| Weight : | 51.5 kg |
| Width : | 1000 mm |
Pipes
| Max Height Difference : | 10 m |
|---|---|
| Max Piping Length : | 25 m |
| Pipe Dimension : | 6.35 x 15.80 mm |
Power Input R32
| R32 Power Input Rated Cooling : | 1.6 kW |
|---|
Refrigerant
| Additional Charge : | 40 g/m |
|---|---|
| Additional Gas Amount : | 40 g/m |
| Refrigerant : | R32 |
| Refrigerant Amount : | 1.7 kg |
| Refrigerant Charge : | 1.7 kg |
| Refrigerant Pipe Size : | 1/4 - 5/8 in |
| Refrigerant precharged up to : | 10 m |
Sound Power/Pressure
| Sound Pressure Level : | 72 dB(A) |
|---|---|
| Sound Pressure Level Cooling : | 62 dB(A) |
| Sound Pressure Level Heating : | 72 dB(A) |
Temperature
| Temperature Range Cooling : | -10 - 50 °C |
|---|---|
| Temperature Range Heating : | -15 - 24 °C |
Product information
The Gree Pular combines fresh air for healthier living with pure and elegant design, superior technology and efficient performance - this air conditioner is set to be the preferred choice for your living spaces. All backed by Gree's 6 year warranty parts and labour warranty.
| File name | Extension | Size |
|---|---|---|
| Brochures | 6.43 MB |
