Description

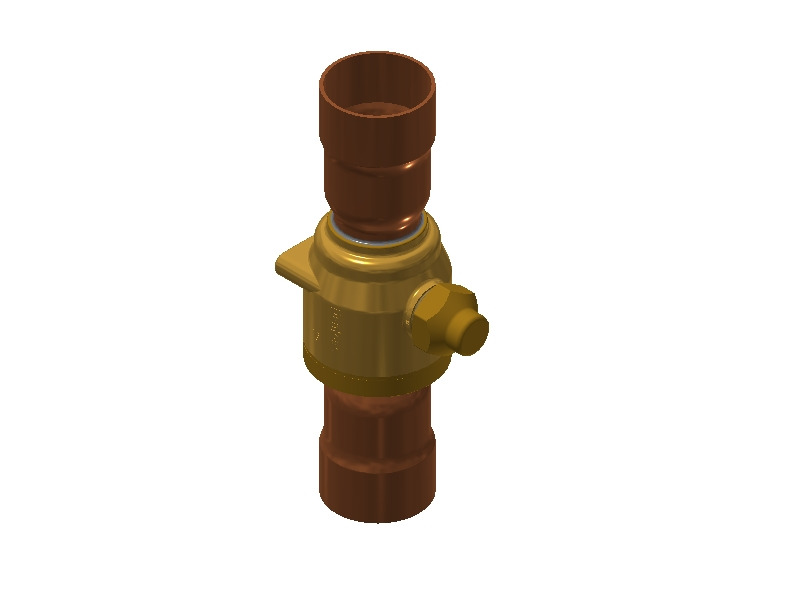

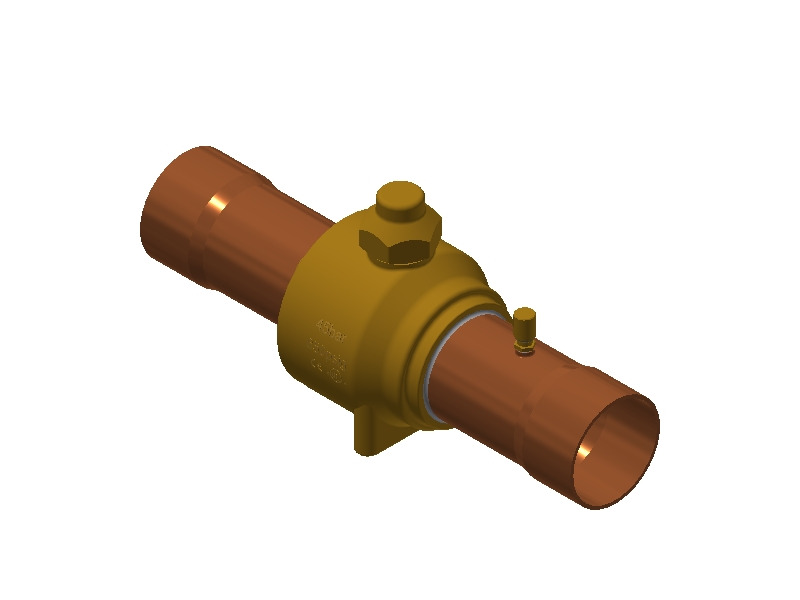

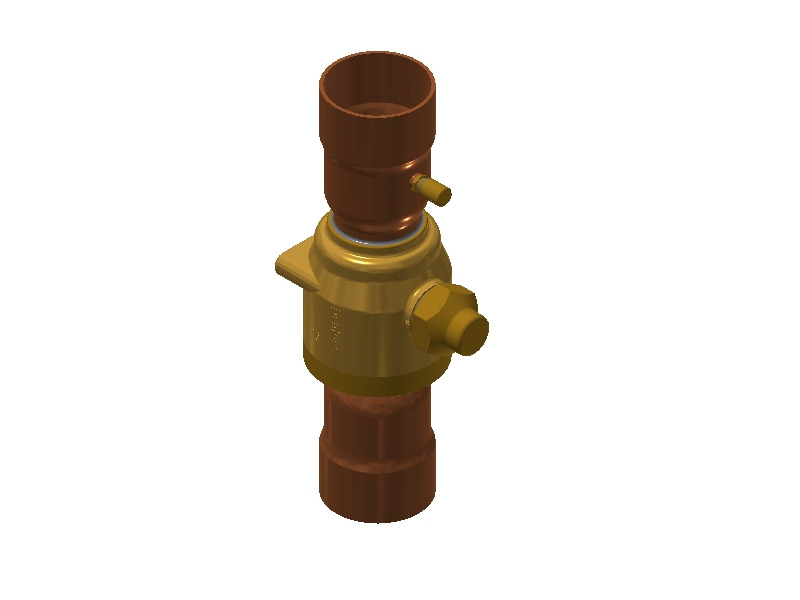

GBC 67s Ball Valve M/2
Danfoss - Ball Valve 2 5/8 ODS W/O Access (009G7036)
Product number:
H1220
| Product Group : | Ball Valves - Danfoss |
|---|
General
| Product Group : | Ball Valves - Danfoss |
|---|
Additional Info
| Family : | GBC v2 |
|---|
Connections
| Connection Size : | 2 5/8 in | Connection Type : | Solder, ODF |
|---|---|---|---|
| Inlet Connection Size : | 2 5/8 in | Inlet Type : | Solder, ODF |
| Outlet Connection Size : | 2 5/8 in | Outlet Type : | Solder, ODF |
General Information
| Equipment : | Cap w. wire seal | Model Number : | 009L7036 |
|---|---|---|---|
| Type : | GBC 67s |
Kv Values
| Kv Value : | 203.120 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818081 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702428007993 | Gross Weight : | 4.847 kg |
Material
| Body Material : | Brass | Connection Material : | Copper |
|---|
Measurements
| Net Weight : | 4.35 kg | Weight : | 4.35 kg |
|---|
Pressure
| Max Operating Pressure : | 45.0 Bar | Test Pressure : | 65 Bar |
|---|
Refrigerant
| Refrigerant : | R22/R407C, R32, R134a, R404A/R507A, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B, R516A, R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | CE, C UL US LISTED, EAC, UKCA |
|---|
Temperature
| Max Temperature : | 121 °C | Medium Temperature Range Note : | 100°C-121°C for short term use |
|---|---|---|---|
| Min Temperature : | -40 °C | Temperature Range : | -40-121 °C |
Valves
| Access Port : | No | CV Value : | 234.810 gal/min |
|---|---|---|---|
| Direction : | Straightway | Flow Direction : | Bi-flow |
| Flow Direction Indicator : | Embossed 2-way arrow |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| data-sheet-shutoff-ball-valve-type-gbc-ast-ai370128771724en-000202.pdf | Technical Literature | 10.31 MB | |
| manufacturer-s-declaration-danfoss-md-033f4010-ast-id365946679604-0201.pdf | Conformity Declaration | 685.67 KB | |
| manufacturer-s-declaration-danfoss-md-033f4017-aa-ast-id365946687610-0101.pdf | Conformity Declaration | 1.26 MB | |
| pressure-safety-certificate-tssa-crn-0c24058-5267890tny-ast-id443047181436-0101.pdf | Conformity Declaration | 11.78 MB | |
| shutoff-ball-valve-type-gbc-6s-to-gbc-79s-ast-an269736735808en-000101.pdf | Installation Manual | 671.51 KB |
