Description

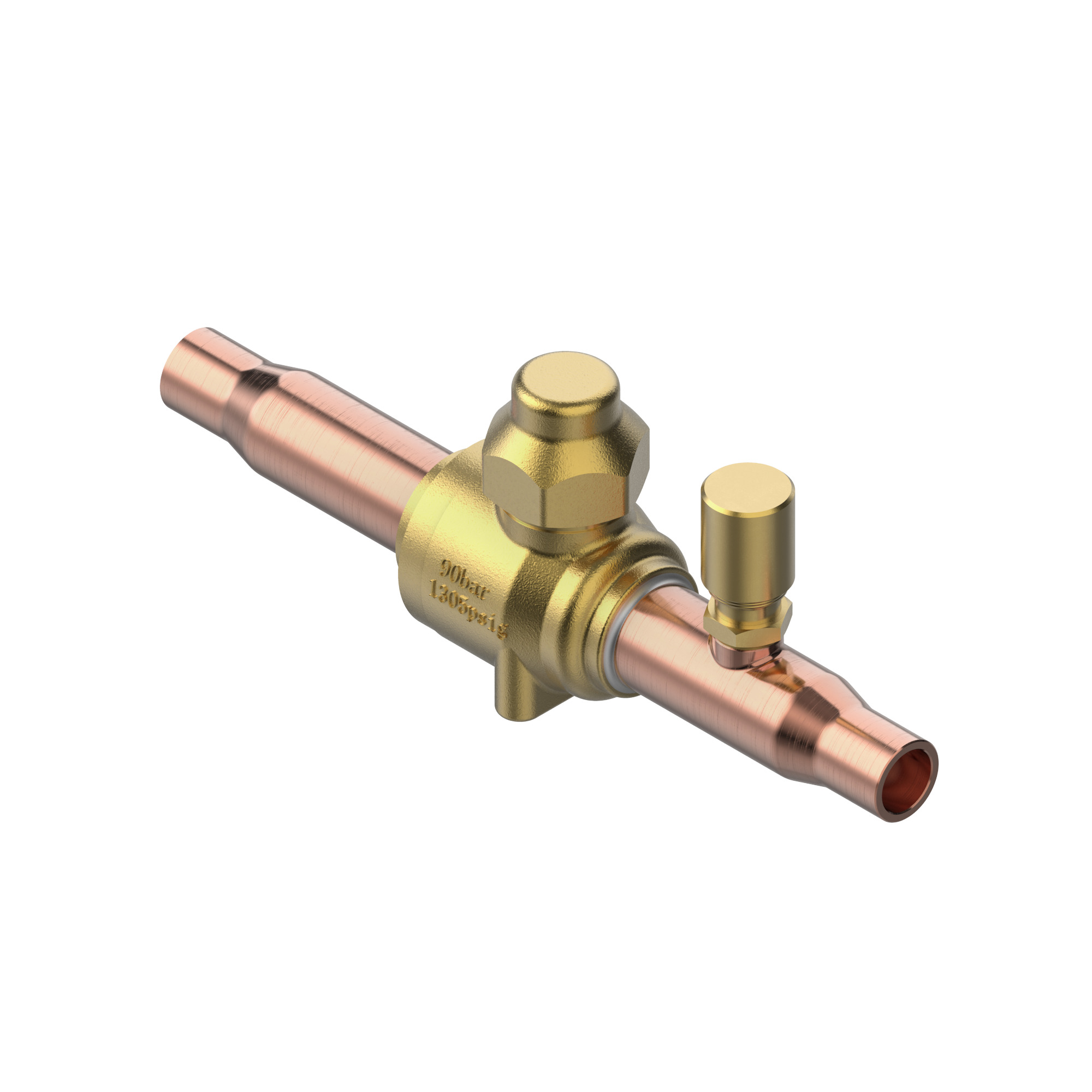

GBCH 10s CO2 90bar Ball Valve M/25 w AP
Danfoss - High Pressure Ball Valve 3/8" With Access
Product number:
H1290
| Product Group : | Ball Valves - Danfoss |
|---|
General
| Product Group : | Ball Valves - Danfoss |
|---|
Additional Info
| Family : | GBCH v2 |
|---|
Connections
| Inlet Connection Size : | 3/8 in | Inlet Type : | Solder, ODF |
|---|---|---|---|
| Outlet Connection Size : | 3/8 in | Outlet Type : | Solder, ODF |
General Information
| Equipment : | Cap w. wire seal | Parts Included : | Schrader valve |
|---|---|---|---|
| Type : | GBCH 10s |
Kv Values
| Kv Value : | 6.310 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818081 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702428515009 | Gross Weight : | 0.305 kg |
Material
| Body Material : | Brass | Connection Material : | Copper |
|---|
Measurements
| Net Weight : | 0.25 kg | Weight : | 0.25 kg |
|---|
Pressure
| Max Operating Pressure : | 90.0 Bar | Test Pressure : | 130 Bar |
|---|
Refrigerant
| Refrigerant : | R744 |
|---|
Standards
| Approval : | CE, UKCA |
|---|
Temperature
| Max Temperature : | 100 °C | Min Temperature : | -40 °C |
|---|---|---|---|
| Temperature Range : | -40-100 °C |
Valves
| Access Port : | Yes | CV Value : | 7.290 gal/min |
|---|---|---|---|
| Direction : | Straightway | Flow Direction : | Bi-flow |
| Flow Direction Indicator : | Embossed 2-way arrow |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| manufacturer-s-declaration-danfoss-md-033f4001-ag-ast-id365946676601-0301.pdf | Conformity Declaration | 1.43 MB | |
| shut-off-ball-valve-type-gbc-gbch-and-gbct-ast-ai270047618978en-000601.pdf | Technical Literature | 13.12 MB | |
| shut-off-ball-valve-type-gbc-gbch-and-gbct-ast-ai270047618978en-000701.pdf | Technical Literature | 14.81 MB | |
| manufacturer-s-declaration-danfoss-md-033f4010-ast-id365946679604-0201.pdf | Conformity Declaration | 685.67 KB | |
| shutoff-ball-valve-type-gbch-6s-to-gbch-42s-ast-an270036611926en-000101.pdf | Installation Manual | 746.75 KB |
