Maneurop Reciprocating Compressor MTZ18-4VI

Product number: MTZ18-4VI

PLEASE LOGIN TO SEE PRICES

Further products

Application :	H/MBP/AC
Nominal HP :	1.1/2
Oil Type :	175PZ
Power Supply :	440/3/50-60 V/Ph/Hz
Product Group :	Comp Herm - Maneurop

Description

MTZ018-4

General

Product Group :	Comp Herm - Maneurop

Additional Info

Family :	MTZ

Application

Application :	H/MBP/AC

Capacity

Capacity Control :	No

Capacity HBP

Capacity HBP -5°C :	2723 kW	Capacity HBP -5°C R448A :	2723 W

Compressor

Power Supply Compressor :	400/3/50 460/3/60 V/Ph/Hz	Swept Volume :	30.23 cm³
Technique :	Hubkolben

Connections

Connection Type :	Valve/Rotolock	Discharge Connection Height :	68 mm
Discharge Connection Pipe Size :	3/8 in	Discharge Connection Size :	1 in
Discharge Line Connection :	1 in	Suction Connection Height :	263 mm
Suction Connection Pipe Size :	1/2 in	Suction Connection Size :	1 in

Electrical

Frequency :	50/60 Hz	IP Class :	IP55
LRA :	20 A	MCC :	5 A
Power Supply :	440/3/50-60 V/Ph/Hz	RLA :	3.5 A
Voltage :	380-400/3/50 V/Ph/Hz

General Information

Colour :	Blue	Cooling Type :	Suction
Model Number :	MTZ18JA4BVE	Number Of Cylinders :	1
Type :	MTZ

Logistical Information

Commodity Code :	84143081	Country Of Origin :	FRA
EAN :	5702428888240	Gross Weight :	23.88 kg

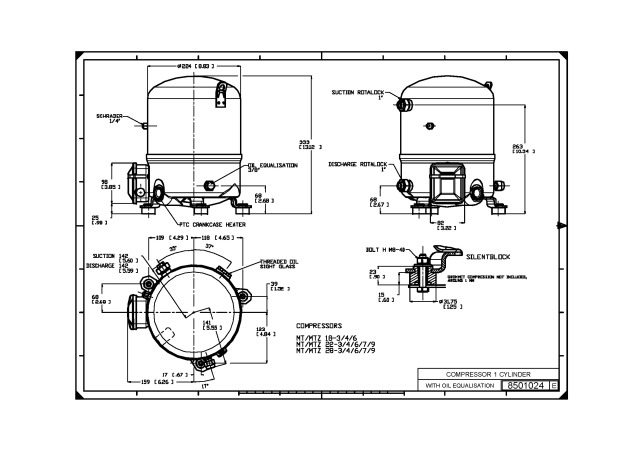

Measurements

Diameter :	224 mm	Height :	333 mm
Length :	225 mm	Weight :	22 kg
Width :	225 mm

Motor

Motor Protector :	Internal	Motor Type :	DOL

Oil

Oil Charge :	950 cm³	Oil Equalization :	3/8'' flare SAE
Oil Type :	175PZ

Performance

Nominal HP :	1.1/2

R404A Performances

R404A Nominal Capacity -5°C :	1580 W

Refrigerant

Max Refrigerant Charge :	3.00 kg	Refrigerant :	R134a, R404A, R407A, R407C, R407F, R448A, R449A, R452A, R507A, R513A

Valves

Expansion Device :	V

File name	Document Type	Extension	Size
safety-data-sheet-polyolester-oil-175pz-english-13-04-2022-ast-bh261646311103en-000202.pdf	Safety Data Sheet	pdf	605.9 KB
installation-guide-danfoss-reciprocating-compressors-mt-mtz-ntz-vtz-ast-an23018649735402-000601.pdf	Installation Manual	pdf	4.6 MB
brochure-compressors-watch-out-for-counterfeits-to-protect-your-image-en-ast-ad170086418808en-020601.pdf	Brochures	pdf	3.91 MB
pressure-safety-certificate-nsw-pv-6-220248-18-ast-id366030051882-0101.pdf	Conformity Declaration	pdf	408.87 KB
brochure-compressors-watch-out-for-counterfeits-to-protect-your-image-en-ast-ad170086418808en-010501.pdf	Brochures	pdf	3.91 MB
pressure-safety-certificate-lrqa-0038-uk-per-mad-20040036-a-ast-id423247697665-0101.pdf	Conformity Declaration	pdf	384.92 KB
eu-uk-declaration-danfoss-eu-uk-8555013-ae-ast-id375130414995-0401.pdf	Conformity Declaration	pdf	261.28 KB
mechanical-safety-certificate-ul-sa6873-ast-id366040907092-0201.pdf	Conformity Declaration	pdf	218.64 KB
electrical-safety-certificate-zw07005-15002d-ast-id365929977113-0101.pdf	Conformity Declaration	pdf	769.37 KB
manufacturer-s-declaration-danfoss-md-8555030-ac-ast-id365946865744-0401.pdf	Conformity Declaration	pdf	671.76 KB
maneurop-mt-mtz-application-guidlines-ast-599000.pdf	Technical Literature	pdf	3.84 MB
manufacturer-s-declaration-danfoss-md-8555014-ab-ast-id365946860740-0301.pdf	Conformity Declaration	pdf	915.78 KB
pressure-safety-certificate-nsw-pv-6-220249-18-ast-id366030053883-0101.pdf	Conformity Declaration	pdf	396.77 KB
manufacturer-s-declaration-danfoss-md-8555016-ab-ast-id365946861741-0301.pdf	Conformity Declaration	pdf	1.16 MB
manufacturer-s-declaration-danfoss-md-8555038-aa-ast-id381948536328-0101.pdf	Conformity Declaration	pdf	393.53 KB
manufacturer-s-declaration-danfoss-md-8555032-d-ast-id365946790688-0101.pdf	Conformity Declaration	pdf	449.83 KB
