Description

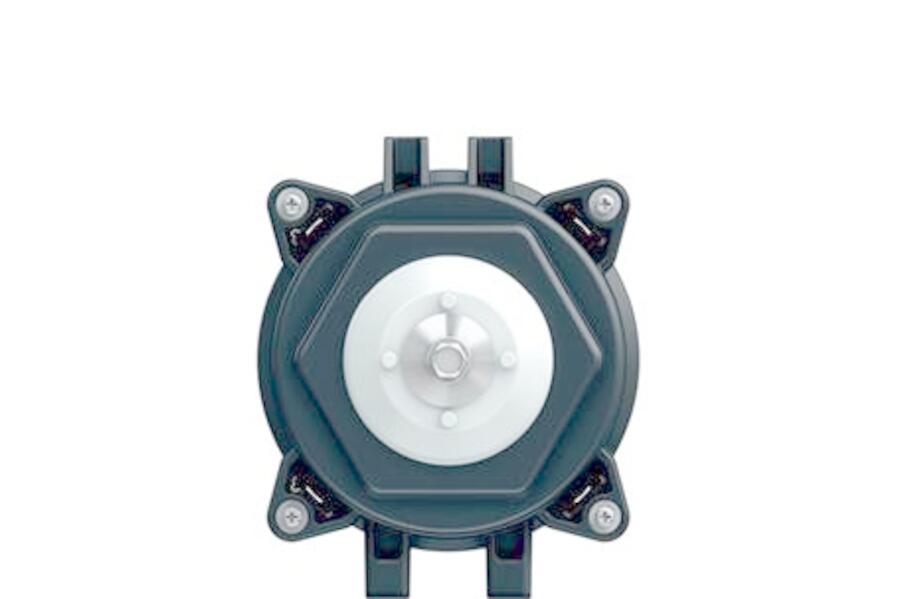

EBM-Papst EC NIQ MOTOR 83 X 90 MM 30W
Product number:
NIQ3224-00-CT1
| Product Group : | Motors - Axial Motors < 500mm |
|---|
General
| Product Group : | Motors - Axial Motors < 500mm |
|---|
Cable
| Cable Length : | 1500 mm |
|---|
Electrical
| Current : | 0.22 A | Power Input : | 32 W |
|---|---|---|---|
| Power Supply : | 240/1/50 V/Ph/Hz |
Fan
| Fan Speed : | 1300 r/min |
|---|
General Information
| Number Of Poles : | EC |
|---|
Measurements
| Height : | 43.5 mm | Length : | 82 mm |
|---|---|---|---|
| Weight : | 0.8 kg | Width : | 27 mm |
Temperature
| Operating Temperature Range : | -30 °C to 50 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| ebmpapst-niq3224-en-ast-1912630.pdf | Brochures | 15.63 MB |
