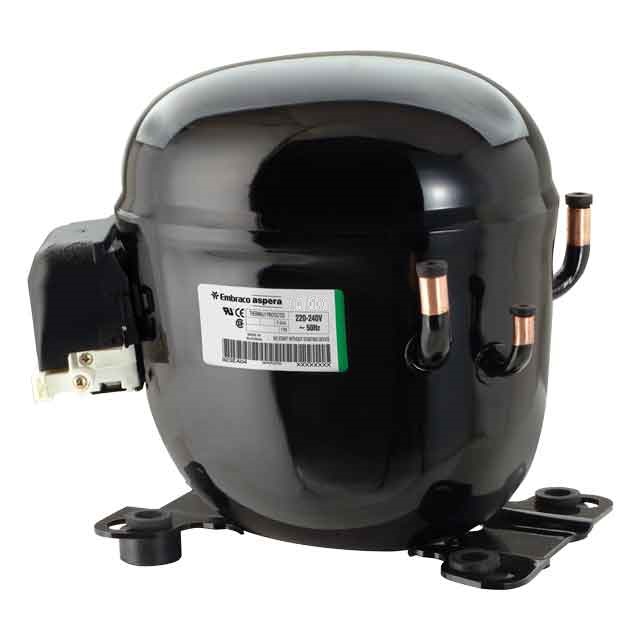

Embraco Compressor NT2212GK CSRBOX

Item Number: NT2212GK-STUB
Central Warehouse:
PLEASE LOGIN TO SEE PRICES
Product Group : Comp Herm - Embraco
Refrigerant : R404A, R452A
VSD Capable : No
General Information
Colour : Black
Cylinder Volume : 27.8 cm³
Model Number : NT2212GK
Mounting Details : 178x114
Product Group : Comp Herm - Embraco
VSD Capable : No
Capacity R404A
R404A Capacity -20°C : 1160 W
Compressor
Displacement : 27.8 cm³
Technique : vollhermetischer Hubkolbenverdichter mit fester Drehzahl
Connections
Connection Type : Tube
Discharge Connection Size : 1/4 in
Discharge Line Connection : 6,42 mm
Process Connection Material : Copper
Suction Connection Size : 3/8 in, 9,6 mm
Suction Line Connection : 0.5
Cooling Capacity R404A
R404A Cooling Capacity Rated -35°C : 0.63 kW
Cooling Capacity R452A
R452A Cooling Capacity Rated -35°C : 0.6 kW
Electrical
Frequency : 50 Hz
LRA : 33 A
Power Supply : 220-240/1/50 V/Ph/Hz
RLA : 4.6 A
Voltage : 220-240/1/50 V
Logistical Information
HS Code : 925DA0204AF
Material
Connection Material : Copper
Measurements
Height : 250 mm
Length : 254 mm
Net Weight : 18.3 kg
Width : 179 mm
Motor
Motor Type : CSR
Oil
Oil Charge : 0.65 dm³
Oil Type : ISO22
Performance
Nominal HP : 1.5 HP
Power Input R404A
R404A Power Input -35°C : 0.67 kW
Power Input R452A
R452A Power Input -35°C : 0.63 kW
Refrigerant
Refrigerant : R404A, R452A
Valves
Expansion Device : C-V
Product information

The NT family can cover a wide range of applications up to 1 ½ HP and can be used for cold rooms, Grab N Go refrigerators and medical upright freezers and blast chillers. Embraco has been strengthening its position in medical refrigeration since 2011, when it started producing NT compressors optimized for ultra low temperature applications, in which the temperature inside the cabinet reaches up to -80°C.

  • Reliable for challenging applications

  • Available in 115 V, 208-230 V, and 3PH

  • 50/60 Hz Input Frequency

  • Refrigerant Compatibility: R134a; R513A; R290; R404A; R448A; R449A; R452A

  • Applications: LBP, MBP, M/HBP



The new NEU and NTU platforms are recognized for their high energy efficiency, performance and reliability. The new generation can be 5 to 10% more energy efficient than the previous models.

File name Extension Size
Technical literature pdf 115.94 KB
