Description
NTZ136-4B

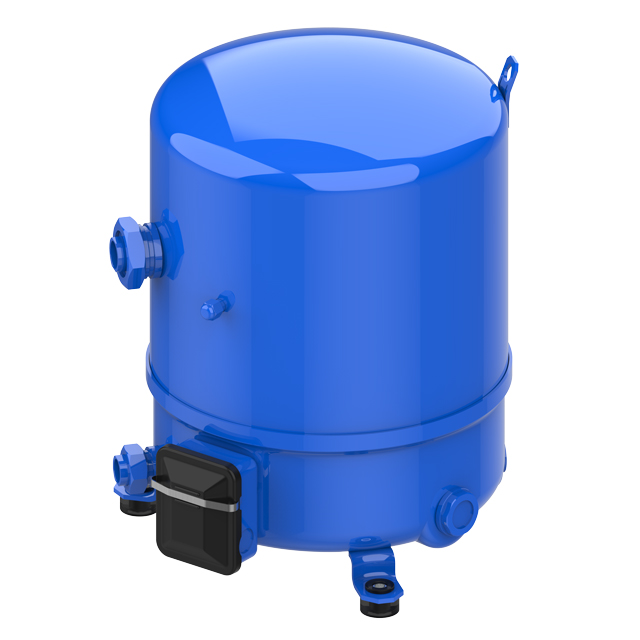

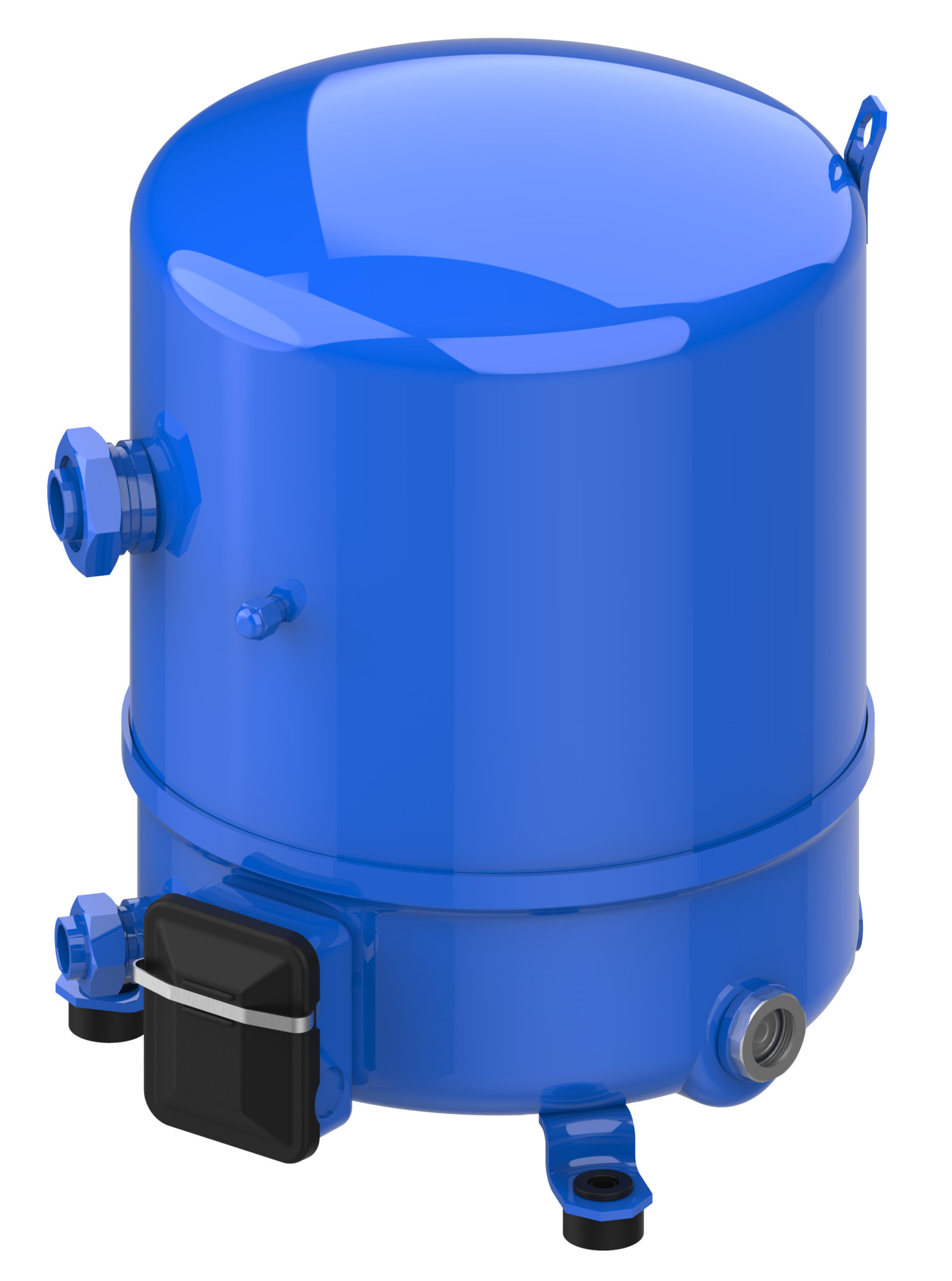

Maneurop Comp NTZ136-4
Product number:
NTZ136-4LR1
| Oil Type : | 175PZ |
|---|---|
| Power Supply : | 380-400/3/50 - 460/3/60 V/Ph/Hz |
| Product Group : | Comp Herm - Maneurop |
General
| Product Group : | Comp Herm - Maneurop |
|---|
Additional Info
| Family : | NTZ |
|---|
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Power Supply Compressor : | 400/3/50 460/3/60 V/Ph/Hz | Swept Volume : | 136.00 cm³ |
|---|---|---|---|
| Technique : | Reciprocating |
Connections
| Connection Type : | Rotolock | Discharge Connection Height : | 74 mm |
|---|---|---|---|
| Discharge Connection Pipe Size : | 3/4 in | Discharge Connection Size : | 1 1/4 in |
| Discharge Line Connection : | 1 1/4 in | Rotolock Discharge Line Connection : | 1 1/4 in |
| Rotolock Suction Connection : | 1 3/4 in | Suction Connection Height : | 265 mm |
| Suction Connection Pipe Size : | 1 1/8 in | Suction Connection Size : | 1 3/4 in |
Electrical
| Frequency : | 50 Hz | IP Class : | IP55 |
|---|---|---|---|
| LRA : | 51 A | MCC : | 14.3 A |
| Phase : | 3 | Power Supply : | 380-400/3/50 - 460/3/60 V/Ph/Hz |
| RLA : | 10.2 A | Voltage : | 400/460 V |
General Information
| Colour : | Blue | Model Number : | NTZ136A4LR1B |
|---|---|---|---|
| Number Of Cylinders : | 2 | Type : | NTZ |
Logistical Information
| Commodity Code : | 84143081 | Country Of Origin : | FRA |
|---|---|---|---|
| EAN : | 5702428521161 | Gross Weight : | 37.42 kg |

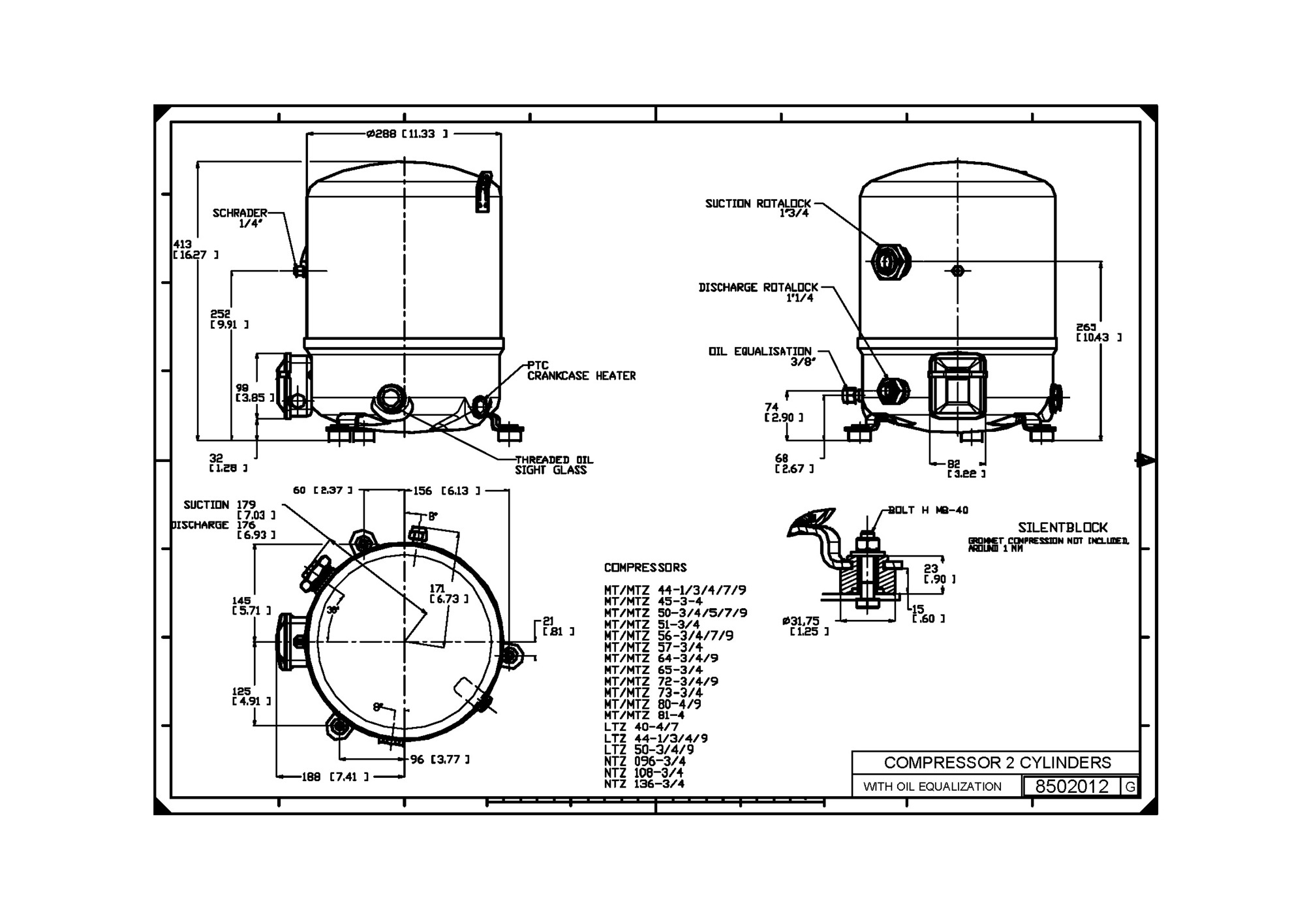

Measurements
| Diameter : | 288 mm | Height : | 413 mm |
|---|---|---|---|
| Length : | 288 mm | Net Weight : | 34.93 kg |
| Weight : | 34.93 kg | Width : | 288 mm |
Oil
| Oil Charge : | 1.80 L | Oil Equalization : | 3/8'' flare SAE |
|---|---|---|---|
| Oil Type : | 175PZ |
Pressure
| Higher Active Pressure : | 28.5 Bar | Lower Active Pressure : | 22.6 Bar |
|---|
Refrigerant
| Max Refrigerant Charge : | 5.00 kg | Refrigerant : | R404A, R452A |
|---|---|---|---|
| Refrigerant Charge : | 5 kg |

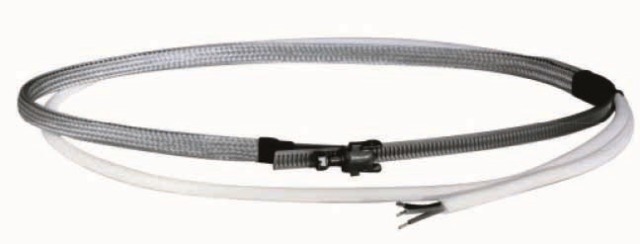

Spare Part
Product Number: 7773107
Manufacturer Code: 7773107
Product Number: 120Z0459
Manufacturer Code: 120Z0459
