Description

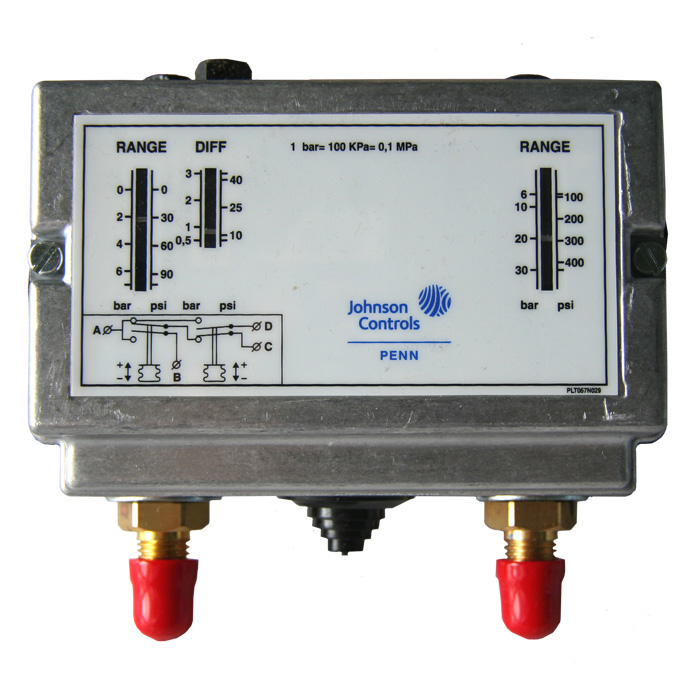

Penn Dual Pressure Control 0.5-7/3-30Bar Auto Reset
Product number:
P78LCA-9300
| Product Group : | Mech Controls - Pressure |
|---|
General
| Product Group : | Mech Controls - Pressure |
|---|
Additional Info
| Additional Info : | 300kPa to 3000kPa high pressure adjustment range, 300kPa high pressure fixed differential, -50kPa to 700kPa low pressure adjustment range, 50kPa to 300kPa low pressure differential |
|---|
Connections
| Connection Size : | 1/4 in | Connection Type : | Flare |
|---|
Electrical
| IP Class : | IP54 |
|---|
General Information
| Model Number : | P78LCA-9300 | Reset Left Side : | Auto |
|---|---|---|---|
| Reset Right Side : | Auto |
Measurements
| Net Weight : | 0.7 kg | Width : | 130 mm |
|---|
Pressure
| Diff Left Side : | 0.5-3 Bar | Diff Right Side : | 3 Bar |
|---|---|---|---|
| Regulating Left Side : | -0.5-7 Bar | Regulating Right Side : | 3-30 Bar |
