Description

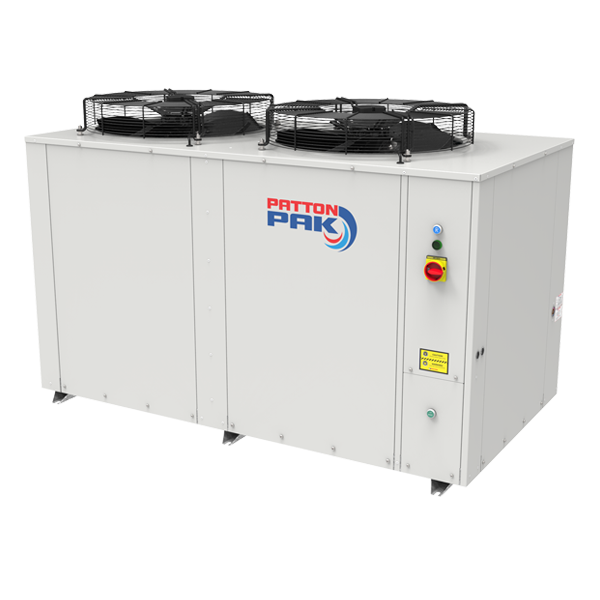

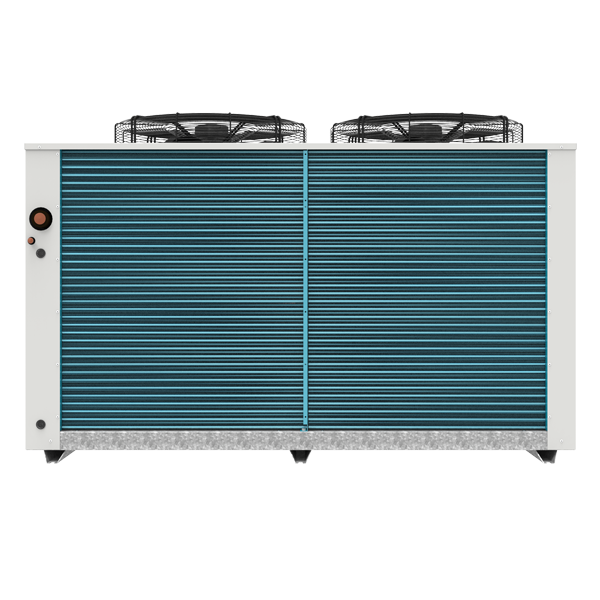

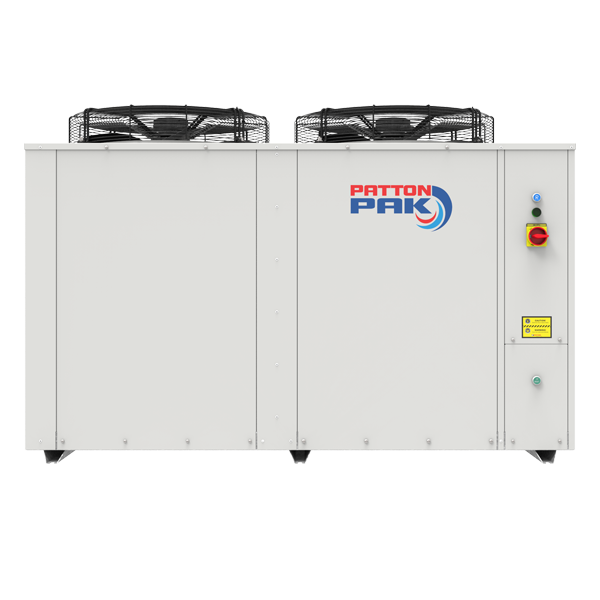

PZB1500 Patton Pak Cond Unit
Product number:
PP1140
| Product Group : | Outdoor Unit - Patton Pak Scroll |
|---|
General
| Product Group : | Outdoor Unit - Patton Pak Scroll |
|---|
Additional Info
| Family : | 1014-30420012 |
|---|
Compressor
| Compressor Model : | ZB114KQE-TFD | Displacement : | 249.09 cc |
|---|---|---|---|
| Power Supply Compressor : | 380-420/3/50 V/Ph/Hz |
Connections
| Liquid Line Connection : | 22.22 mm | Suction Connection Size : | 41.3 mm |
|---|
Fan
| Fan Diameter : | 630 mm | Number Of Fans : | 2 |
|---|
General Information
| Receiver Volume : | 20 kg |
|---|
Measurements
| Height : | 1150 mm | Net Weight : | 235 kg |
|---|
R134A Performances
| R134a Nominal Capacity -5°C : | 20050 W |
|---|
R404A Performances
| R404A Nominal Capacity -25°C : | 18550 W |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| patton-pzb-pzbs-pzf-en-ast-1382666.pdf | Technical Literature | 4.95 MB |
