Description

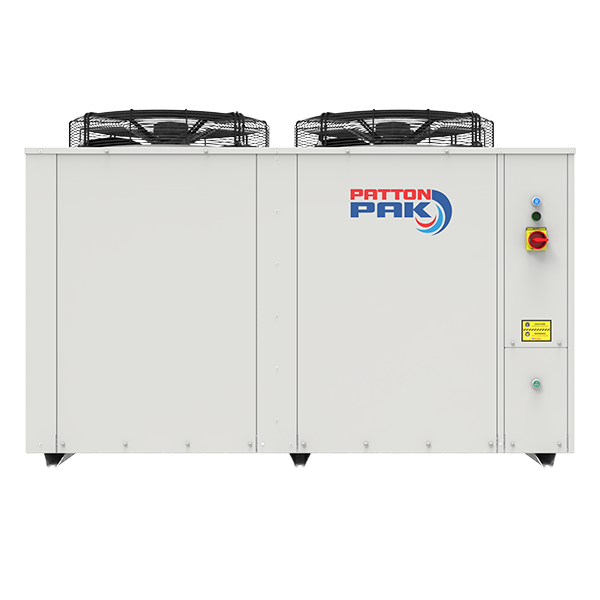

PSF200 Patton Pak Cond Unit
Product number:
PP1197
| Product Group : | Outdoor Unit - Patton Pak Semi-Hermetic |
|---|
General
| Product Group : | Outdoor Unit - Patton Pak Semi-Hermetic |
|---|
Additional Info
| Family : | 1014-30434113 |
|---|
Compressor
| Compressor Model : | B 2 10.1 Y | Displacement : | 9.9 m³/h |
|---|---|---|---|
| Power Supply Compressor : | 380-420/3/50 V/Ph/Hz |
Connections
| Liquid Line Connection : | 12.7 mm | Suction Connection Size : | 19.05 mm |
|---|
Fan
| Fan Diameter : | 350 mm | Number Of Fans : | 2 |
|---|
General Information
| Receiver Volume : | 6.2 kg |
|---|
Measurements
| Height : | 814 mm | Net Weight : | 170 kg |
|---|
R134A Performances
| R134a Nominal Capacity -5°C : | 3810 W |
|---|
R404A Performances
| R404A Nominal Capacity -25°C : | 3170 W |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| patton-psf-en-ast-1382668.pdf | Technical Literature | 2.08 MB |
