PattonPak E-Series Condensing Unit PSBM3000E
Item Number:
PSBM3000E
| Nominal HP : | 30 |
|---|---|
| Product Group : | Outdoor Unit - Patton Pak Semi-Hermetic |
General Information
| Product Group : | Outdoor Unit - Patton Pak Semi-Hermetic |
|---|---|
| Receiver Volume : | 45 L |
Additional Info
| Family : | PattonPak E-Series |
|---|
Air Volume/Air Flow
| Air Flow : | 14100 L/s |
|---|
Compressor
| Compressor Model : | 4GE-30Y |
|---|---|
| Power Supply Compressor : | 380-420/3/50 V/Ph/Hz |
Connections
| Liquid Line Connection : | 28.58 mm |
|---|---|
| Suction Connection Size : | 54 mm |
Electrical
| MCC : | 51.2 A |
|---|---|
| RLA : | 32.77 A |
Fan
| Fan Diameter : | 630 mm |
|---|---|
| Number Of Fans : | 4 |

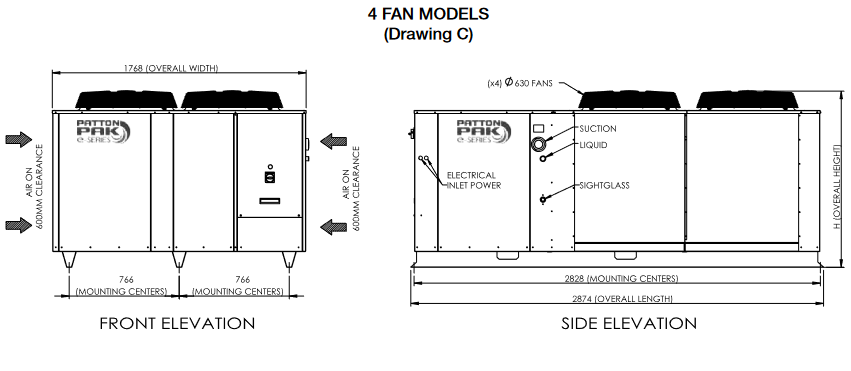

Measurements
| Height : | 1227 mm |
|---|---|
| Length : | 2874 mm |
| Net Weight : | 900 kg |
| Width : | 1768 mm |
Nominal Capacity R404A
| R404A Nominal Capacity -5°C : | 52010 W |
|---|---|
| R404A Nominal Capacity -25°C : | 50440 W |
Performance
| Nominal HP : | 30 |
|---|
Sound Power/Pressure
| Sound Pressure Level @ 3 Meters : | 66 dB(A) |
|---|
Product information
Fitted with Bitzer Ecoline semi-hermetic compressors and combined with EC fan technology and large air-cooledcondensers, PattonPak E-Series outdoor package units have been designed and engineered with a high level energyefficiency in mind. These units are also available with Bitzers advanced CRII capacity control and VFD versions withvariable speed drives. These options allow compressor capacity to adjust to variable load requirements and furtherenhance energy efficiency by providing optimised capacity and operation.All condenser coils are coated with “Patton Coat” coil and fin protection and enclosures have hardy constructionwith signal white powder coated finish ensuring units are both aesthetically pleasing and can handle the elements.
