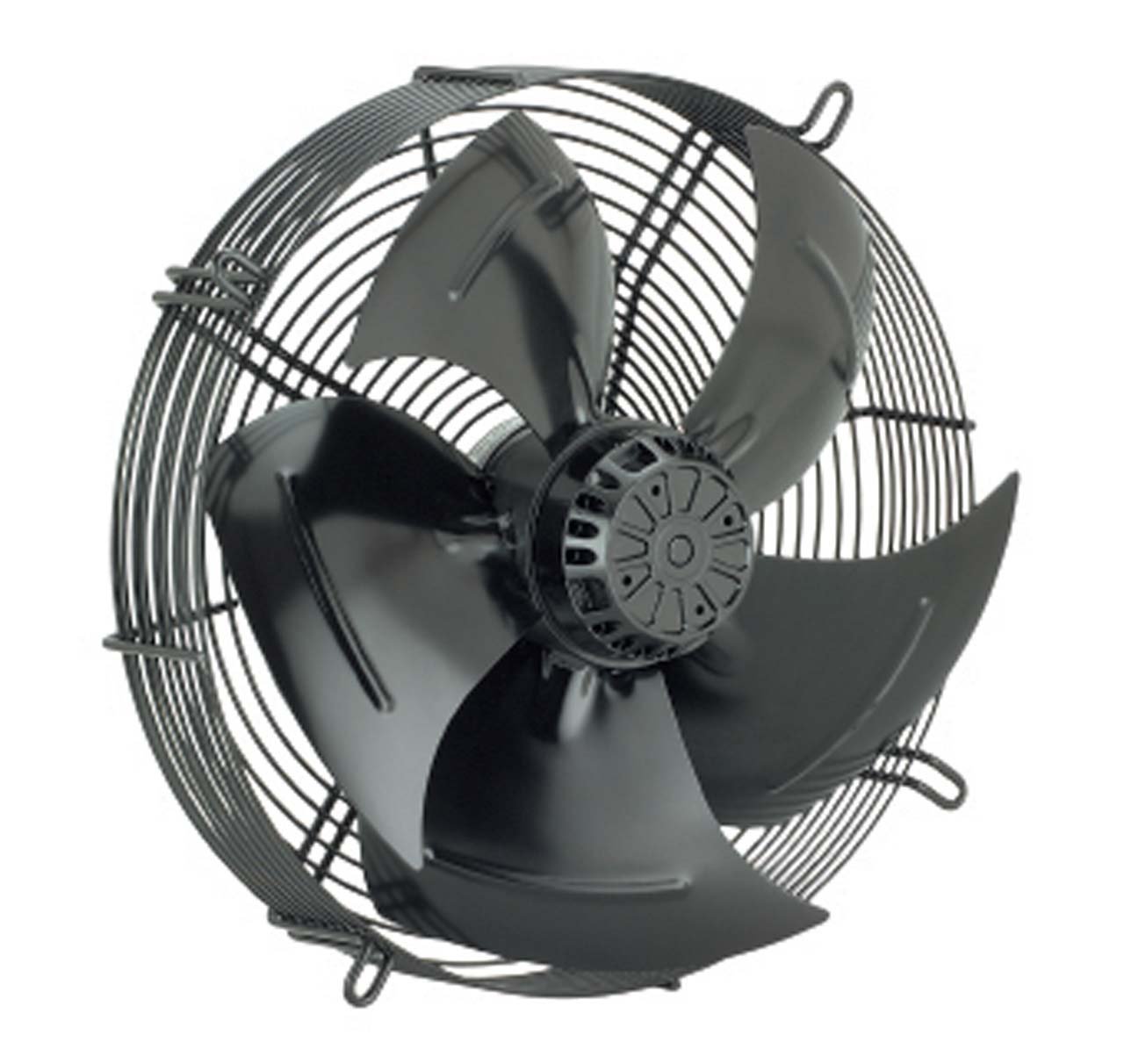

EBM-Papst Motor Ebm 4P 1Ph 400Mm Dia
Item Number:
S4E400-AP02-44
| Power Supply : | 240/1/50 V/Ph/Hz |
|---|---|
| Product Group : | Motors - Axial Motors < 500mm |
General Information
| Number Of Poles : | EC |
|---|---|
| Product Group : | Motors - Axial Motors < 500mm |
Air Volume/Air Flow
| Air Flow : | 2675 m³/h |
|---|
Electrical
| Capacitor : | 6.3 µF |
|---|---|
| Current : | 0.73 A |
| IP Class : | IP55 |
| Power Input : | 160 W |
| Power Supply : | 240/1/50 V/Ph/Hz |
Fan
| Fan Diameter : | 400 mm |
|---|---|
| Fan Speed : | 1430 r/min |
Measurements
| Height : | 470 mm |
|---|---|
| Length : | 470 mm |
| Weight : | 6.1 kg |
| Width : | 189 mm |
Sound Power/Pressure
| Sound Power Level : | 72 dB(A) |
|---|
Temperature
| Operating Temperature Range : | -30 °C to 60 °C |
|---|
