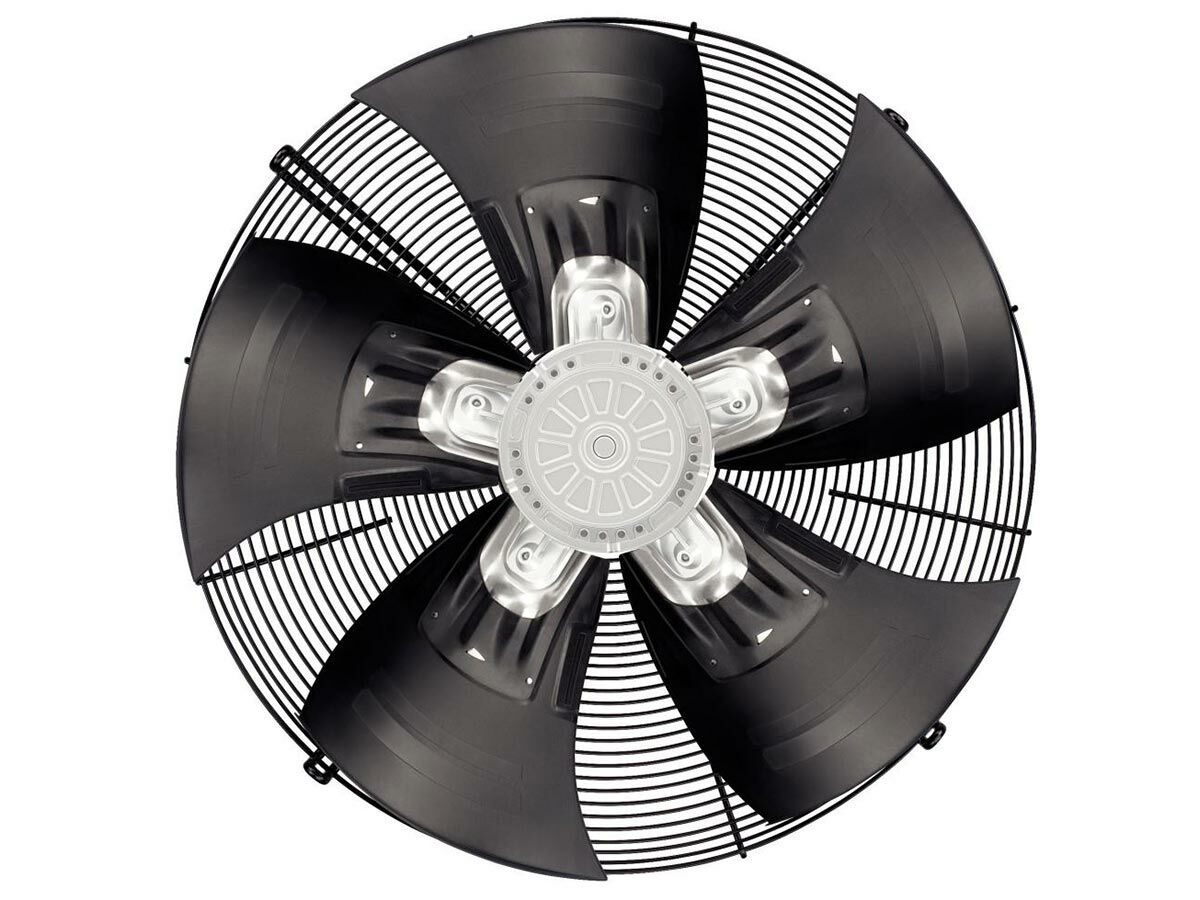

EBM-Papst EBM 630mm 1PH Fan Motor
Item Number:
S6E630-AN01-01
| Power Supply : | 240/1/50 V/Ph/Hz |
|---|---|
| Product Group : | Motors - Axial Motors > 500mm |
General Information
| Number Of Poles : | 6 |
|---|---|
| Product Group : | Motors - Axial Motors > 500mm |
Air Volume/Air Flow
| Air Flow : | 11025 m³/h |
|---|
Electrical
| Capacitor : | 14 µF |
|---|---|
| Current : | 2.62 A |
| IP Class : | IP54 |
| Power Input : | 600 W |
| Power Supply : | 240/1/50 V/Ph/Hz |
Fan
| Fan Diameter : | 630 mm |
|---|---|
| Fan Speed : | 925 r/min |
Measurements
| Height : | 750 mm |
|---|---|
| Length : | 750 mm |
| Weight : | 14 kg |
| Width : | 179.5 mm |
Sound Power/Pressure
| Sound Power Level : | 70 dB(A) |
|---|---|
| Sound Pressure Level : | 64 dB(A) |
Temperature
| Operating Temperature Range : | -30 °C to 60 °C |
|---|
