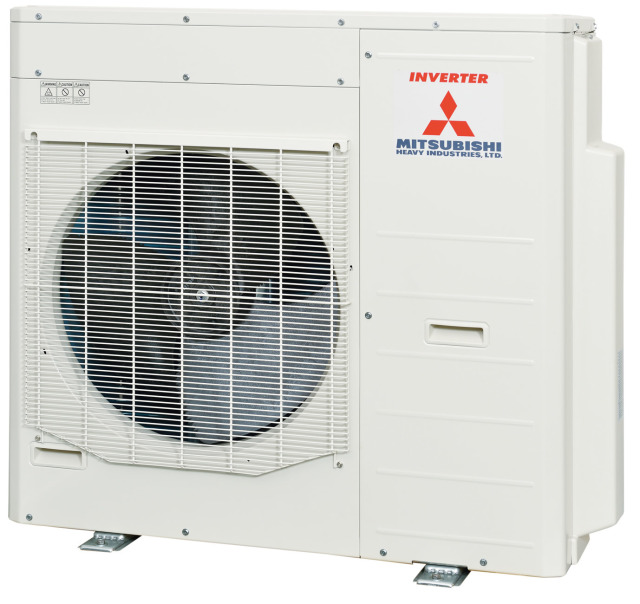

MHI Inverter Multi-Split System Outdoor Unit 12.5kW
MHI Inverter Multi-Split System Outdoor Unit 12.5kW
Product number:
SCM125ZM-S
This product requires F-Gas certificate
| Cooling Capacity : | 12.5 kW |
|---|---|
| EER : | 3.21 |
| Heating Capacity : | 13.5 kW |
| Product Group : | Multi-split - MHI |
| Refrigerant : | R410A |
| Voltage : | 230 V |
General
| Product Group : | Multi-split - MHI |
|---|
Additional Info
| Indoor Units Connectable (Quantity) : | 6 | Single Split / Multi Split : | Multi |
|---|
Cooling Capacity
| Cooling Capacity : | 12.5 kW |
|---|
Electrical
| Max Current : | 29.0 A | Power Consumption Cooling : | 3.9 kW |
|---|---|---|---|
| Power Consumption Heating : | 3.25 kW | Power Input (Heating/Cooling) : | 3.9 / 3.25 kW |
| Power Supply : | 220-240/1/50 V/Ph/Hz | Recommended Fuse : | 30 A |
| Voltage : | 230 V |
Energy Efficiency/Performance
| COP : | 4.15 | EER : | 3.21 |
|---|
Fan
| Number Of Fans : | 1 |
|---|
General Information
| Model Number : | SCM125ZM-S |
|---|
Heating Capacity
| Heating Capacity : | 13.5 kW |
|---|
Measurements
| Depth : | 370 mm | Height : | 945 mm |
|---|---|---|---|
| Weight : | 92.0 kg | Width : | 970 mm |
Pipes
| Max Height Difference (Outdoor is Higher/Lower) : | 20 / 20 m | Max Piping Length : | 90 m |
|---|---|---|---|
| Pipe Dimension : | 1/4 in, 3/8 in, 6.35 mm, 9.52 mm | Total Pipe Length Range : | 90 m |
Refrigerant
| Refrigerant : | R410A | Refrigerant Charge : | 6 kg |
|---|---|---|---|
| Refrigerant Pipe Size : | 1/4-3/8 in, 6.35-9.52 mm | Refrigerant precharged up to : | 50 m |
Sound Power/Pressure
| Sound Pressure Level : | 57 dB(A) | Sound Pressure Level Cooling : | 57 dB(A) |
|---|---|---|---|
| Sound Pressure Level Heating : | 60 dB(A) |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| mhi-multisplit-brochure-en-ast-319474.pdf | Brochures | 4.56 MB |
