Description
SM185-4

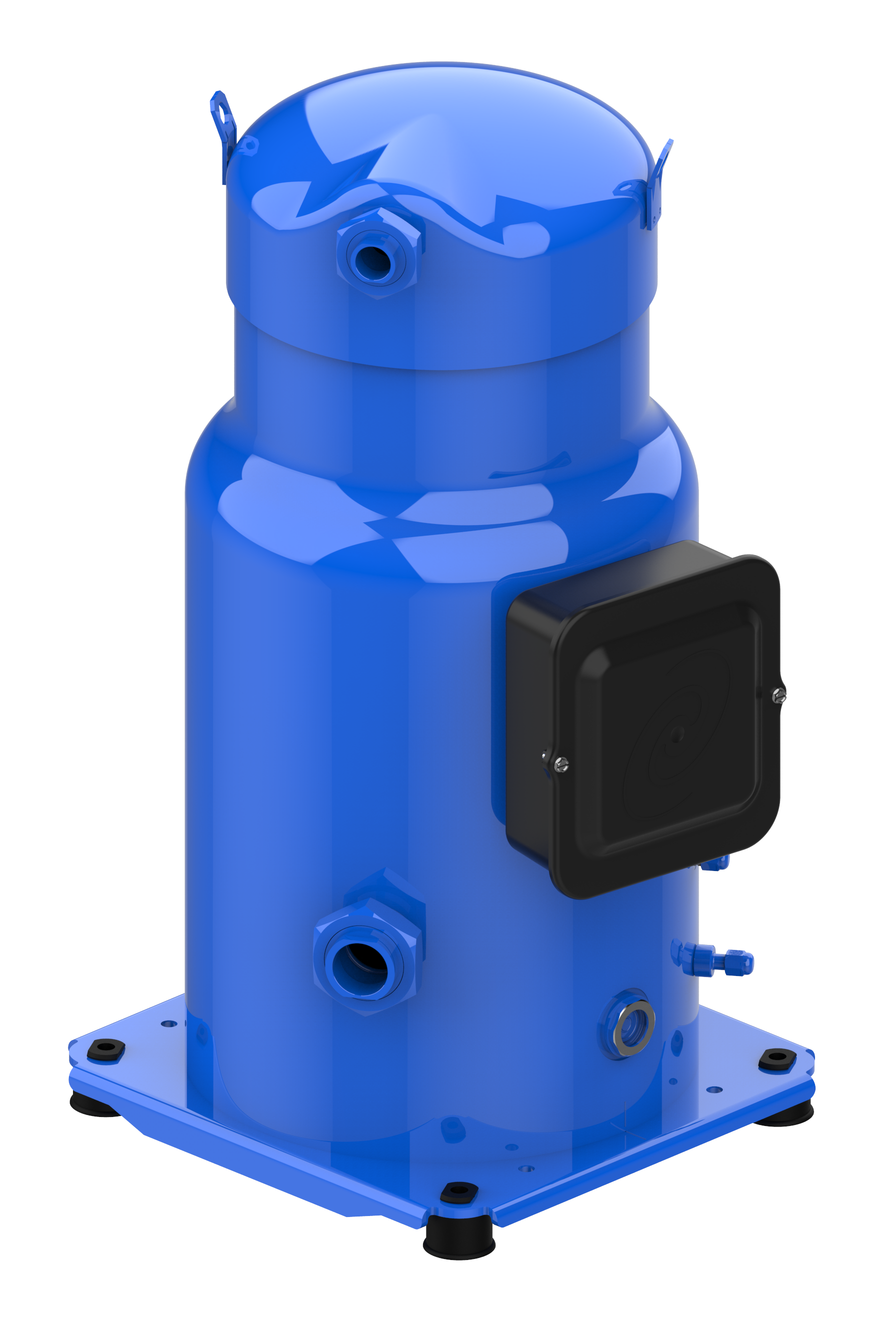

Maneurop Scroll Compressor SM185-4RI
Product number:
SM185-4RI
| Oil Type : | Mineral |
|---|---|
| Power Supply : | 380-400/3/50-60 V/Ph/Hz |
| Product Group : | Comp Scroll - Maneurop |
General
| Product Group : | Comp Scroll - Maneurop |
|---|
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Power Supply Compressor : | 400/3/50 460/3/60 V/Ph/Hz | Swept Volume : | 249.90 cm³ |
|---|---|---|---|
| Technique : | Scroll |
Connections
| Connection Type : | Rotolock | Discharge Connection Height : | 643 mm |
|---|---|---|---|
| Discharge Connection Pipe Size : | 7/8 in | Discharge Connection Size : | 1 3/4 in |
| Discharge Line Connection : | 1 3/4 in | Suction Connection Height : | 180 mm |
| Suction Connection Pipe Size : | 1 3/8 in | Suction Connection Size : | 2 1/4 in |
| Suction Line Connection : | 2 1/4 in |
Electrical
| Frequency : | 50/60 Hz | IP Class : | IP54 |
|---|---|---|---|
| LRA : | 175 A | MCC : | 35 |
| Max Current : | 35 A | Max Operating Current : | 35 A |
| Power Supply : | 380-400/3/50-60 V/Ph/Hz |
General Information
| Colour : | Blue | Model Number : | SM185S4RC |
|---|---|---|---|
| Type : | SM |
Logistical Information
| Commodity Code : | 84143081 | Country Of Origin : | FRA |
|---|---|---|---|
| EAN : | 5702428980418 | Gross Weight : | 120 kg |
Measurements
| Diameter : | 317 mm | Height : | 678 mm |
|---|---|---|---|
| Weight : | 102.30 kg |
Oil
| Oil Charge : | 6.20 L | Oil Type : | Mineral |
|---|
Refrigerant
| Max Refrigerant Charge : | 13.50 kg | Refrigerant : | R22 |
|---|
