Description
SY300-4
Danfoss Comp SY300A4PB 3ph R134a,R407c R/Lock
Product number:
SY300A4CBI
| Power Supply : | 400/3/50 V/Ph/Hz |
|---|---|
| Product Group : | Comp Scroll - Maneurop |
General
| Product Group : | Comp Scroll - Maneurop |
|---|
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Power Supply Compressor : | 400/3/50 460/3/60 V/Ph/Hz | Swept Volume : | 437.50 cm³ |
|---|---|---|---|
| Technique : | Scroll |
Connections
| Connection Type : | Brazed | Discharge Connection Height : | 665 mm |
|---|---|---|---|
| Discharge Connection Pipe Size : | 1 1/8 in | Discharge Connection Size : | 1 1/8 in |
| Suction Connection Height : | 196 mm | Suction Connection Pipe Size : | 1 5/8 in |
| Suction Connection Size : | 1 5/8 in |
Electrical
| Frequency : | 50/60 Hz | IP Class : | IP54 |
|---|---|---|---|
| LRA : | 270 A | MCC : | 69 A |
| Power Supply : | 400/3/50 V/Ph/Hz | RLA : | 49.3 A |
General Information
| Colour : | Blue | Model Number : | SY300A4CBI |
|---|---|---|---|
| Type : | SY300A4CBI |
Logistical Information
| Commodity Code : | 84143081 | Country Of Origin : | FRA |
|---|---|---|---|
| EAN : | 5702428660648 | Gross Weight : | 162.38 kg |

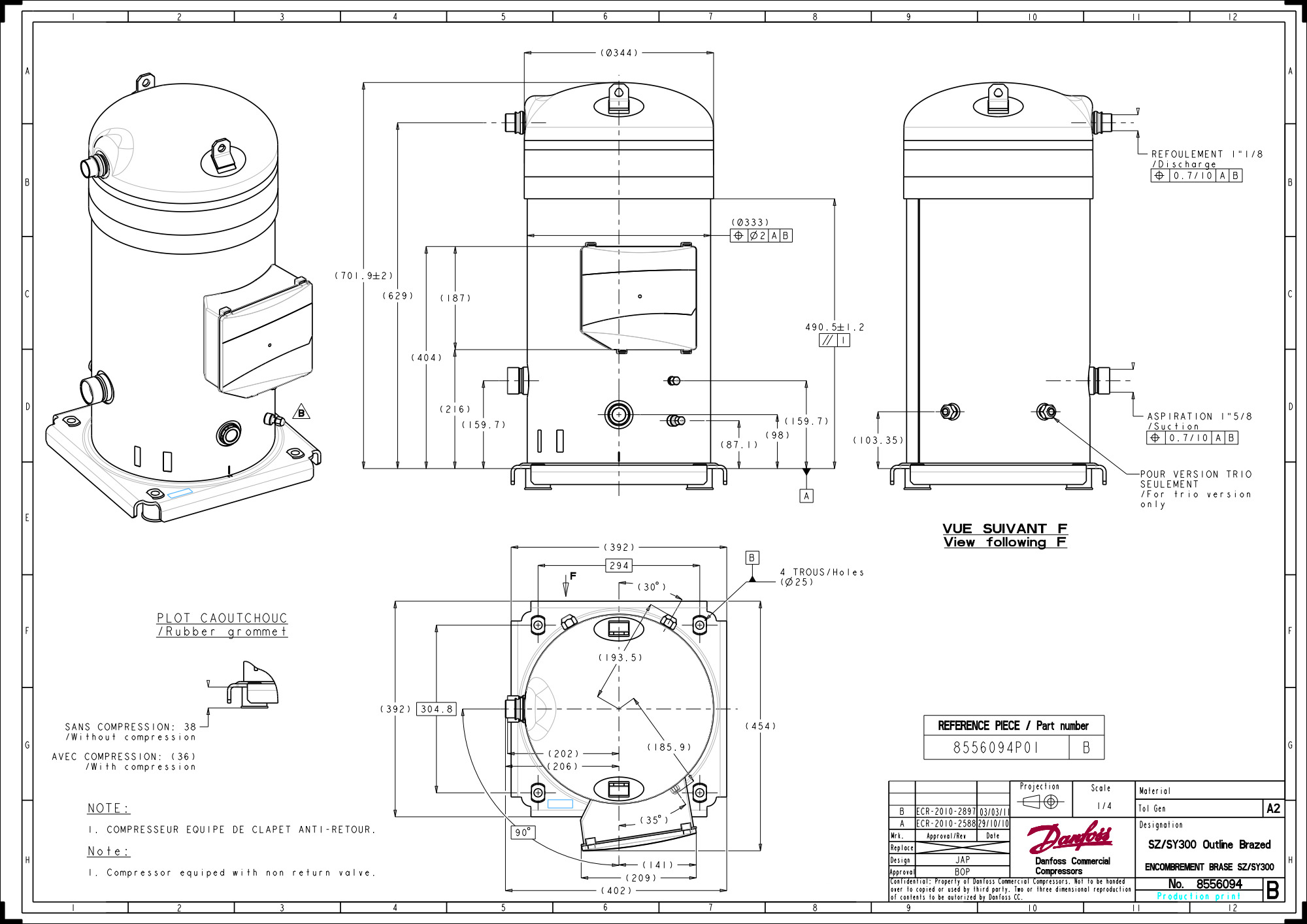

Measurements
| Diameter : | 344 mm | Height : | 738 mm |
|---|---|---|---|
| Weight : | 157.15 kg |
Oil
| Oil Charge : | 8 L |
|---|
Pipes
| Pipe Diameter : | 1 1/8 in |
|---|
Refrigerant
| Max Refrigerant Charge : | 20 kg | Refrigerant : | R22, R134a, R407C, R513A |
|---|
