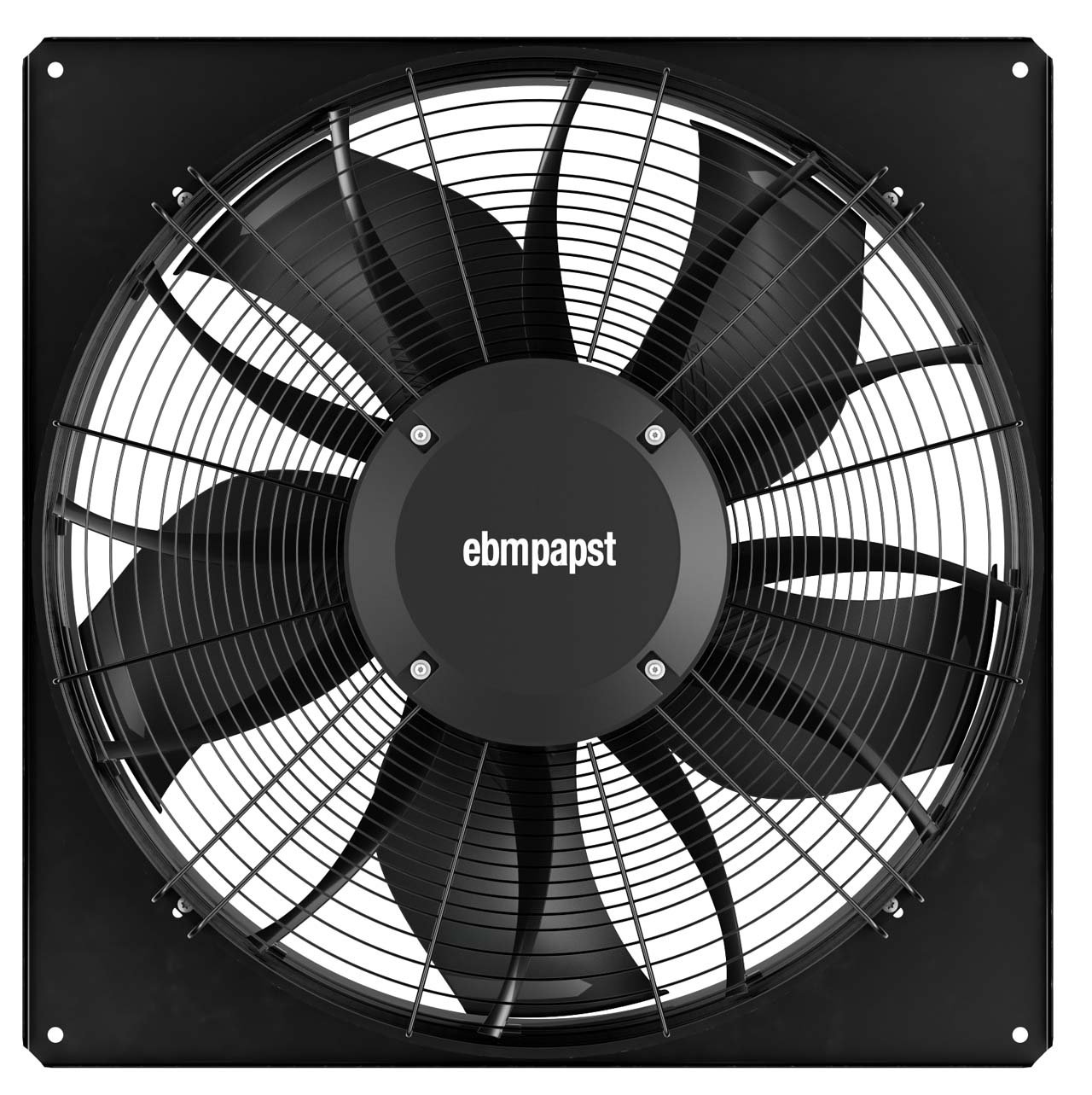

EBM-Papst Fan Motor W3G800-KU21-05 (Blade 880mm Wide)
Item Number:
W3G800KU2105
| Power Supply : | 380-415/3/50 V/Ph/Hz |
|---|---|
| Product Group : | Motors - Axial Motors > 500mm |
General Information
| Number Of Poles : | EC |
|---|---|
| Product Group : | Motors - Axial Motors > 500mm |
Air Volume/Air Flow
| Air Flow : | 19455 m³/h |
|---|
Electrical
| Current : | 4 A |
|---|---|
| IP Class : | IP55 |
| Power Input : | 2650 W |
| Power Supply : | 380-415/3/50 V/Ph/Hz |
Fan
| Fan Diameter : | 880 mm |
|---|---|
| Fan Speed : | 1100 r/min |
Measurements
| Height : | 923 mm |
|---|---|
| Length : | 970 mm |
| Weight : | 50 kg |
| Width : | 334 mm |
Sound Power/Pressure
| Sound Power Level : | 77 dB(A) |
|---|
Temperature
| Operating Temperature Range : | -25 °C to 65 °C |
|---|
