Description

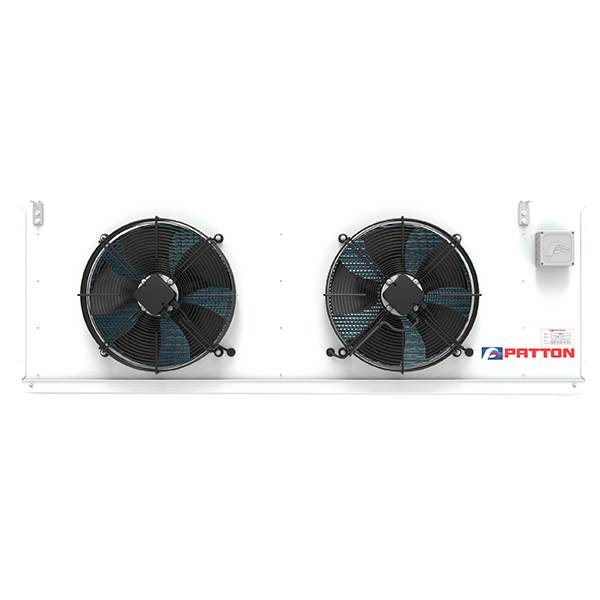

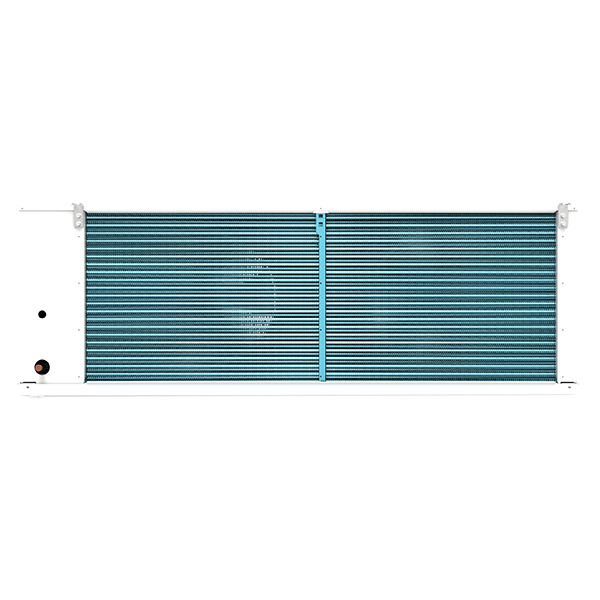

Med Temp Unit Cooler RM60
Product number:
W5595
| Fin Spacing : | 3 mm |
|---|---|
| Product Group : | Evap - Patton MT |
| R134a Capacity @ -4SST/6KTD : | 5220 W |
| Temperature Application : | Medium Temp |
General
| Product Group : | Evap - Patton MT |
|---|
Air Volume/Air Flow
| Air Throw : | 10.9 m | Air Volume : | 6804 m³/h |
|---|
Coils
| Coil : | Fin and Tube |
|---|
Connections
| Drain Connection Size : | 20 mm | Liquid Line Connection : | 1/2 in |
|---|---|---|---|
| Suction Line Connection : | 3/4 in |
Drain
| Drain Location : | Right |
|---|
Electrical
| Electric Defrost : | No | Electrical Connection Location : | Right |
|---|
Evaporator
| Fin Spacing : | 3 mm |
|---|
Fan
| Fan Size : | 450 mm | Number Of Fans : | 1 |
|---|
Measurements
| Depth : | 472 mm | Height : | 631 mm |
|---|---|---|---|
| Length : | 1055 mm | Weight : | 75 kg |
R134A Performances
| R134a Capacity @ -4SST/6KTD : | 5220 W |
|---|
R404A Performances
| R404A Capacity @ -4SST/6KTD : | 5940 W |
|---|
R448A Performances
| R448A Capacity @ -4SST/6KTD : | 6060 W |
|---|
Temperature
| Temperature Application : | Medium Temp |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| patton-r-series-en-ast-609008.pdf | Technical Literature | 996.26 KB |
