Description

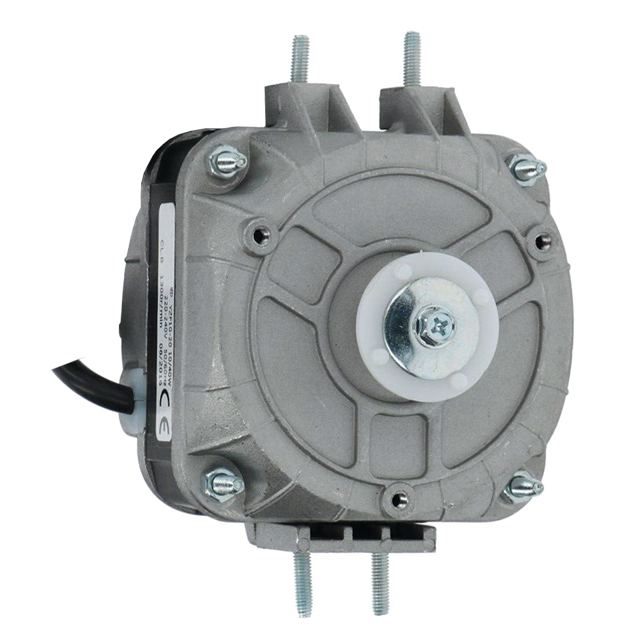

Freddox Square Shaded Pole Fan Motor 16W
Product number:
YFDX16
| Product Group : | Motors - Shaded Pole |
|---|
General
| Product Group : | Motors - Shaded Pole |
|---|
Cable
| Cable Length : | 1000 mm |
|---|
Electrical
| Amp : | 0.45 A | Frequency : | 50/60 Hz |
|---|---|---|---|
| IP Class : | IP42 | Input Voltage : | 220 - 240 V |
| Power Input : | 60 W | Watt : | 16 W |
Fan
| Disc Shape : | Round | Fan Blade Size : | 254 mm |
|---|---|---|---|
| Fan Speed : | 1300 r/min |
Flanges
| Output Flange Dimension : | 25.4 mm |
|---|
General Information
| Model Number : | YFDX16 | Rotation Direction : | CCW |
|---|
Measurements
| Depth : | 92 mm | Height : | 99 mm |
|---|---|---|---|
| Length : | 83 mm | Net Weight : | 1.4 kg |
Motor
| Bearing Type : | Sleeve |
|---|
Mounting
| Mounting Details : | Horizontal or Vertical | Mounting Method : | Bracket or Grille Type |
|---|
Temperature
| Operating Temperature Range : | -25-50 °C |
|---|
