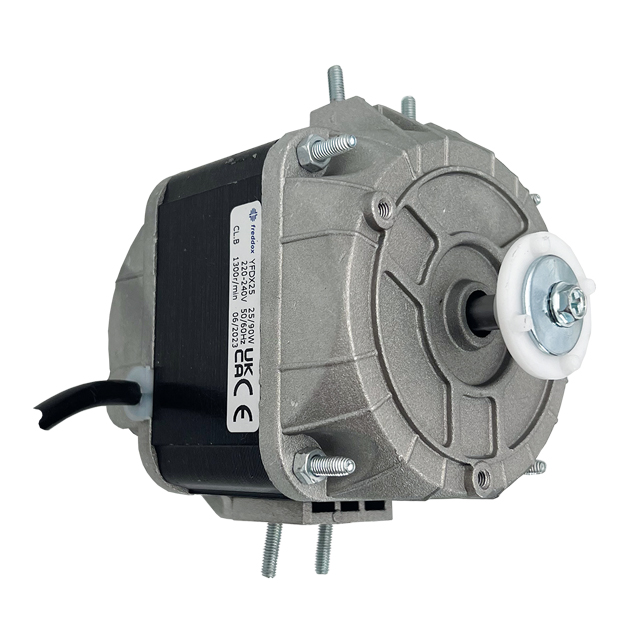

| Product Group : | Motors - Shaded Pole |
|---|
| Product Group : | Motors - Shaded Pole |
|---|
| Cable Length : | 1000 mm |
|---|
| Amp : | 0.7 A | Frequency : | 50/60 Hz |
|---|---|---|---|
| IP Class : | IP42 | Input Voltage : | 220 - 240 V |
| Power Input : | 90 W | Watt : | 25 W |
| Disc Shape : | Round | Fan Blade Size : | 300 mm |
|---|---|---|---|
| Fan Speed : | 1300 r/min |
| Output Flange Dimension : | 25.4 mm |
|---|
| Model Number : | YFDX25 | Rotation Direction : | CCW |
|---|
| Depth : | 112 mm | Height : | 99 mm |
|---|---|---|---|
| Length : | 83 mm | Net Weight : | 1.8 kg |
| Bearing Type : | Sleeve |
|---|
| Mounting Details : | Horizontal or Vertical | Mounting Method : | Bracket or Grille Type |
|---|
| Operating Temperature Range : | -25-50 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| beijerrefab-fanmotor-freddox-24-en-web-ast-3207260.pdf | Brochures | 684.55 KB |
