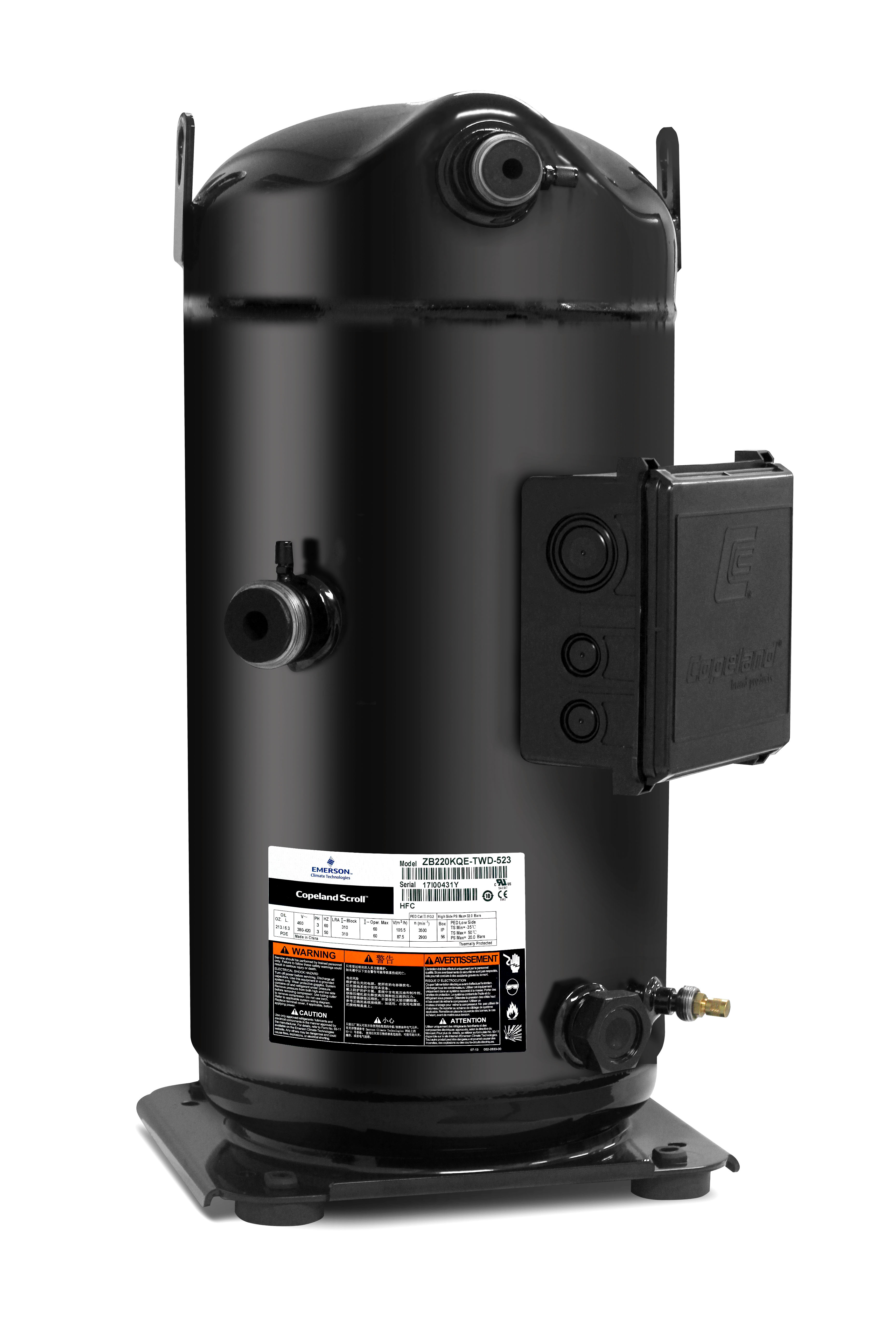

Compressor Scroll Zb 10Hp 3Ph
Item Number:
ZB76KQE-TFD-551
| Capacity Control : | No |
|---|---|
| Displacement : | 28.8 m³/h |
| Nominal HP : | 10 HP |
| Oil Type : | POE 32 |
| Power Supply : | 380-420/3/50 V/Ph/Hz |
| Product Group : | Comp Scroll - Copeland |
| Refrigerant : | R404A |
| VSD Capable : | Yes |
| Voltage : | 380-420 V |
General Information
| Model Number : | ZB76KQE-TFD-551 |
|---|---|
| Product Group : | Comp Scroll - Copeland |
| VSD Capable : | Yes |
Capacity
| Capacity Control : | No |
|---|
Compressor
| Displacement : | 28.8 m³/h |
|---|
Connections
| Discharge Connection Pipe Size : | 1 1/4 in |
|---|---|
| Discharge Line Connection : | 22.22 mm |
| Suction Connection Pipe Size : | 1 3/4 in |
| Suction Line Connection : | 28.6 mm |
Electrical
| IP Class : | IP21 |
|---|---|
| LRA : | 118 A |
| MOC : | 20.7 A |
| Power Supply : | 380-420/3/50 V/Ph/Hz |
| RLA : | 20 A |
| Voltage : | 380-420 V |
Measurements
| Height : | 566 mm |
|---|---|
| Length : | 264 mm |
| Net Weight : | 62 kg |
| Weight : | 65 kg |
| Width : | 284 mm |
Motor
| Motor Protector : | Internal |
|---|---|
| Motor Type : | DOL |
Nominal Capacity R134a
| R134a Nominal Capacity -5°C : | 11100 W |
|---|
Nominal Capacity R404A
| R404A Nominal Capacity -5°C : | 18550 W |
|---|
Oil
| Oil Charge : | 3250 cc |
|---|---|
| Oil Type : | POE 32 |
Performance
| Nominal HP : | 10 HP |
|---|
Refrigerant
| Refrigerant : | R404A |
|---|
Product information
| File name | Extension | Size |
|---|---|---|
| Technical literature | 63.34 KB |
