Description

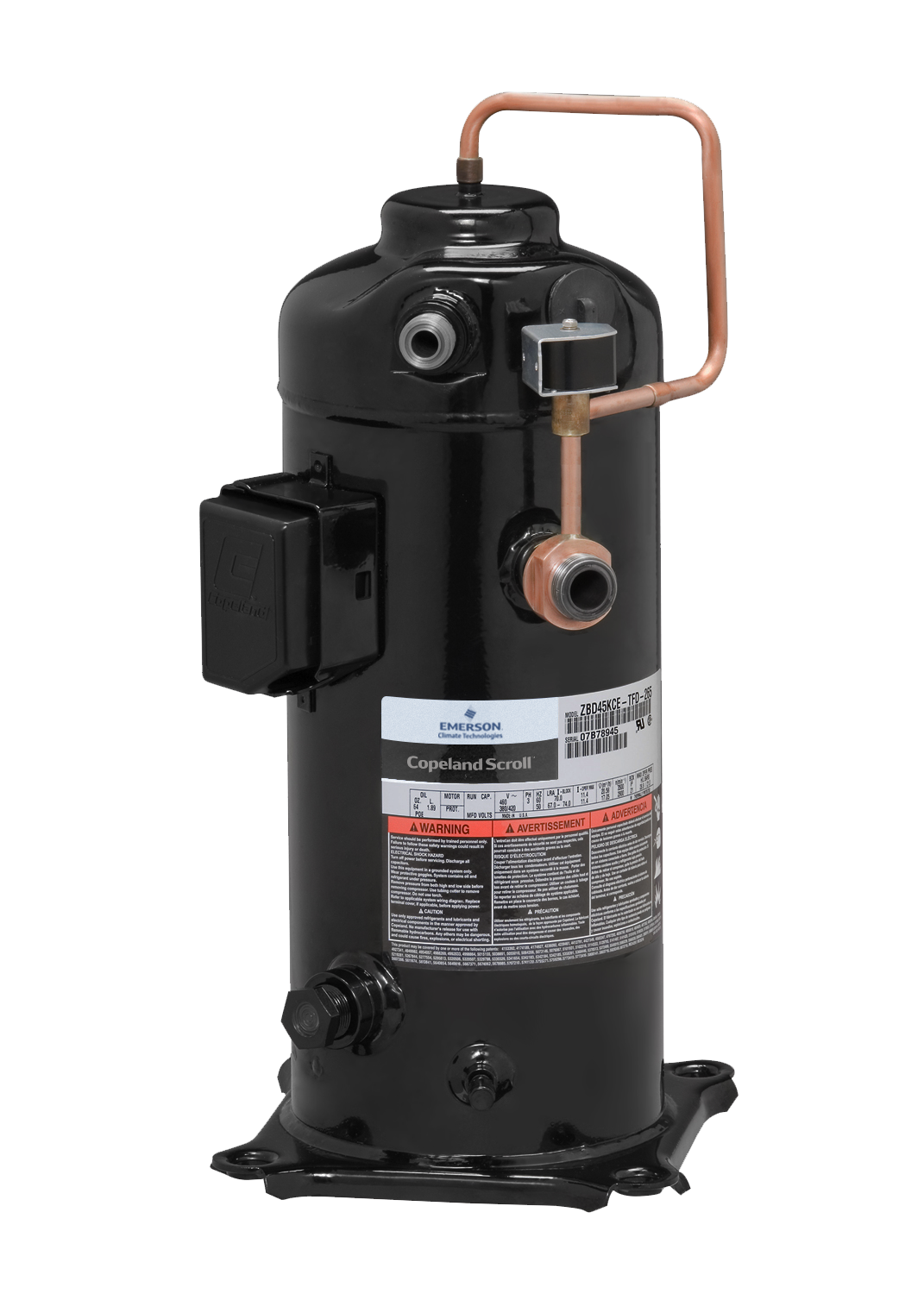

Copeland Digital Scroll Compressor ZBD45KQE-TFD-559-C
Product number:
ZBD45KQE-TFD-559-C
| Displacement : | 17.1 m³/h |
|---|---|
| Nominal HP : | 6 HP |
| Oil Type : | POE 32 |
| Product Group : | Comp Scroll - Copeland |
| VSD Capable : | No |
General
| Product Group : | Comp Scroll - Copeland |
|---|
Capacity
| Capacity Control : | Yes - Digital |
|---|
Compressor
| Displacement : | 17.1 m³/h |
|---|
Connections
| Discharge Line Connection : | 12.7 mm | Suction Line Connection : | 22.22 mm |
|---|
Electrical
| MOC : | 12.5 A | Voltage : | 380-420/3/50 V/Ph/Hz |
|---|
General Information
| VSD Capable : | No |
|---|
Measurements
| Height : | 495 mm | Weight : | 40 kg |
|---|
Motor
| Motor Protector : | Internal | Motor Type : | DOL |
|---|
Oil
| Oil Charge : | 1900 cc | Oil Type : | POE 32 |
|---|
Performance
| Nominal HP : | 6 HP |
|---|
R134A Performances
| R134a Nominal Capacity -5°C : | 6600 W |
|---|
R404A Performances
| R404A Nominal Capacity -5°C : | 10750 W |
|---|
