Description

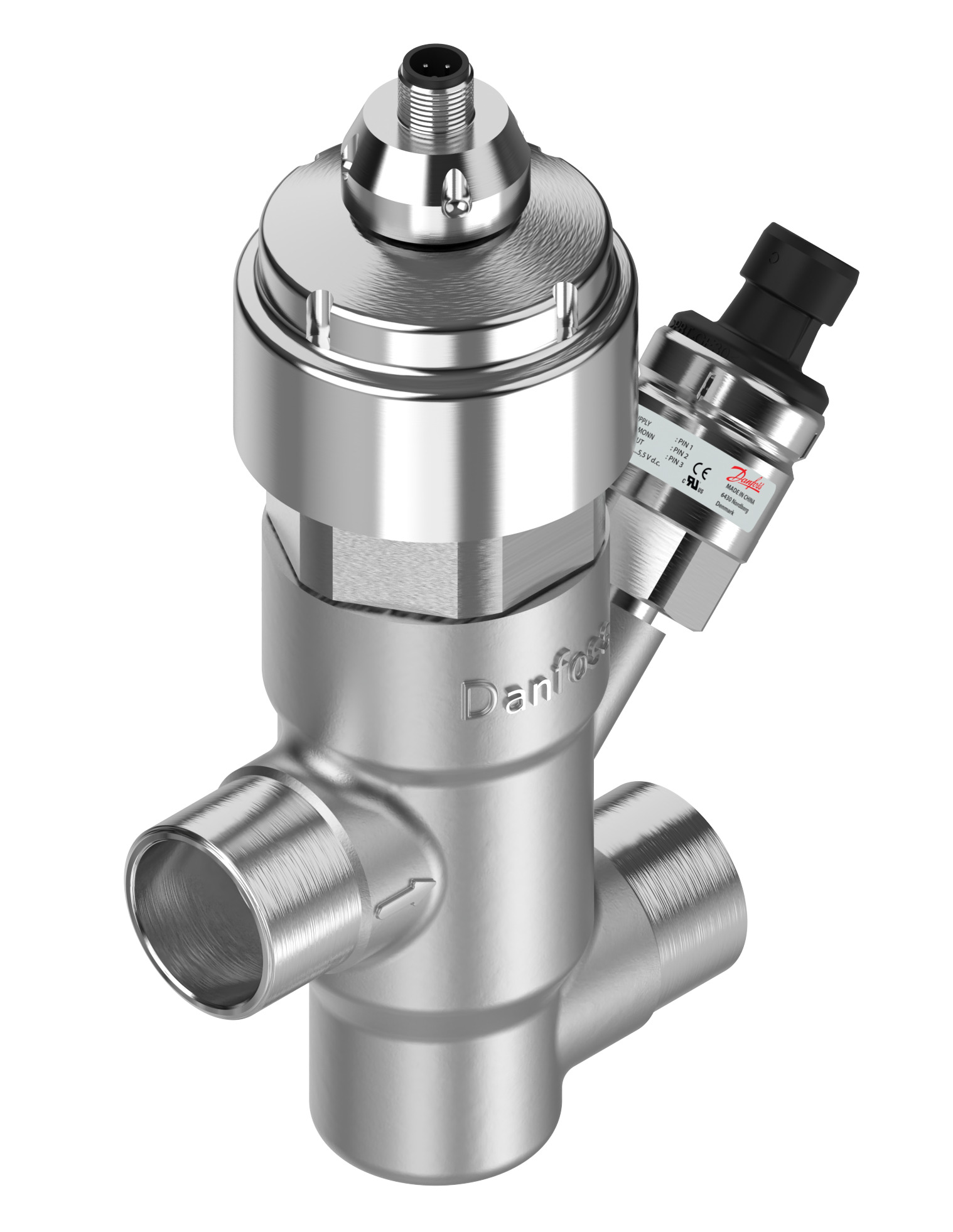

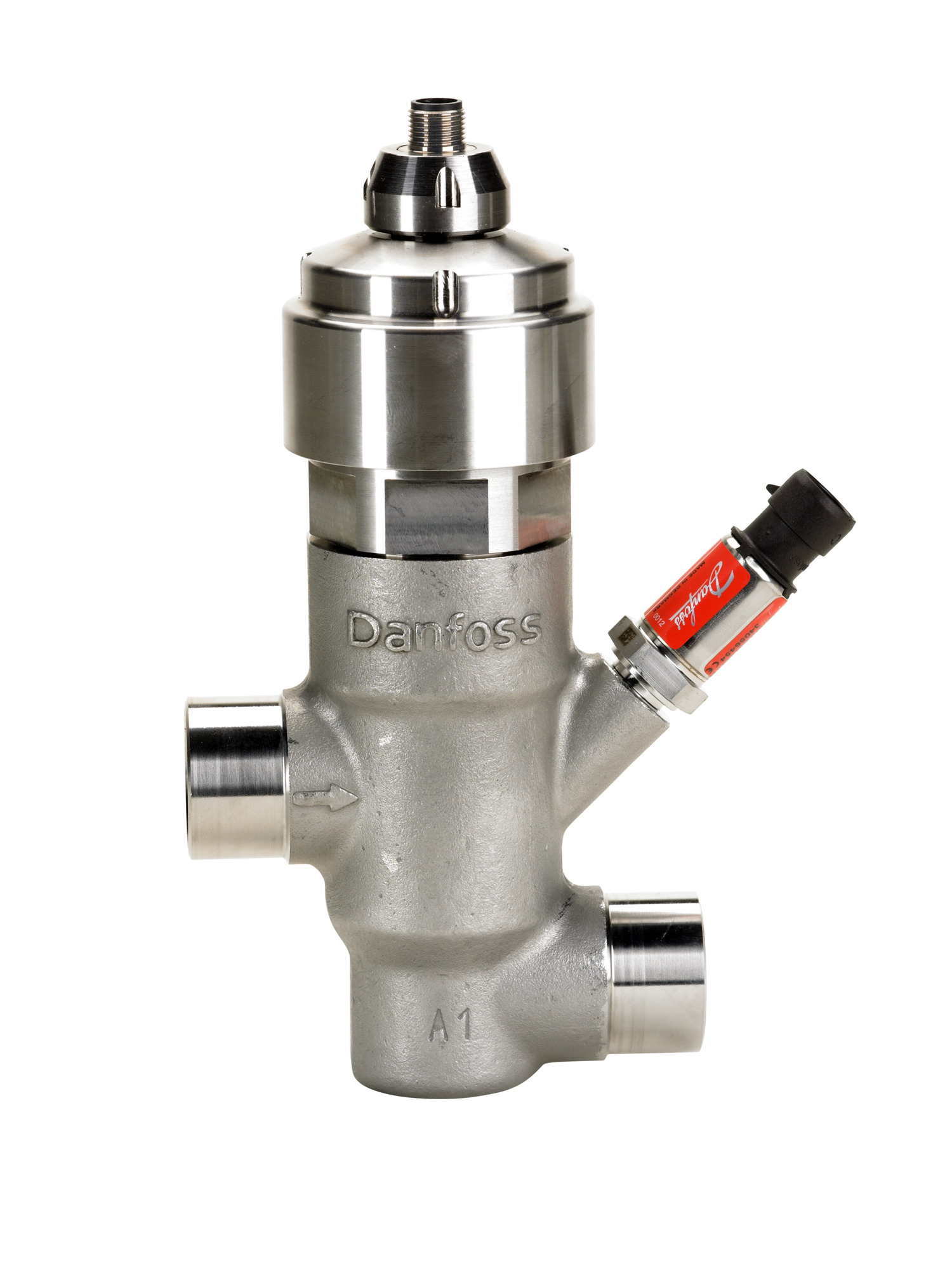

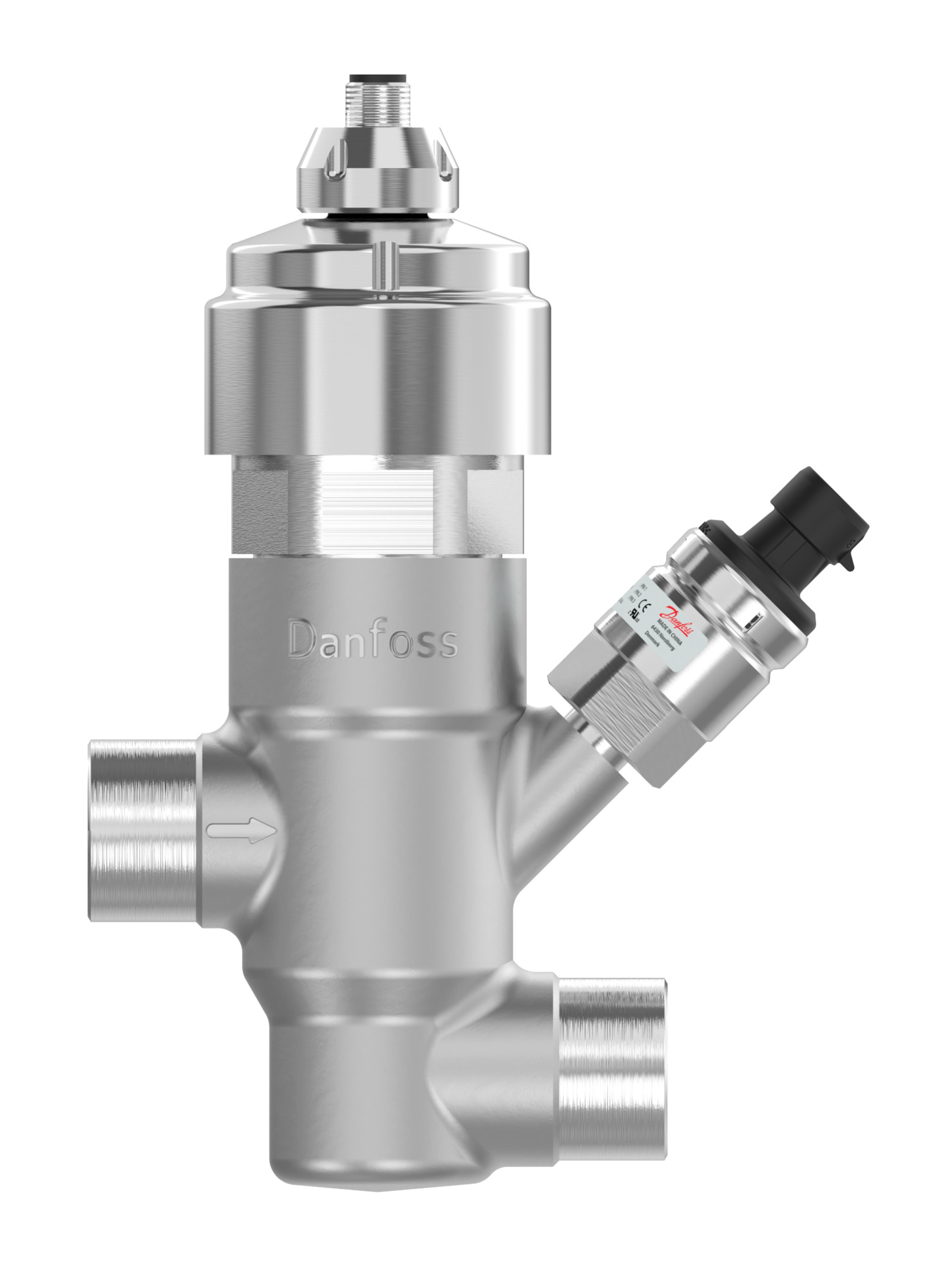

CCMT 42 Electric reg. valve
Danfoss CCMT 42 Valve
Product number:
027H7234
| Product Group : | Industrial Controls - Miscellaneous |
|---|
General
| Product Group : | Industrial Controls - Miscellaneous |
|---|
Additional Info
| Additional Info : | Solder, ODF | Family : | CCMT |
|---|
Connections
| Connection Size : | 1 1/8 in |
|---|
General Information
| Type : | CCMT 42 |
|---|
Kv Values
| Kv Value : | 4.200 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818059 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428921800 | Gross Weight : | 3.02 kg |
Measurements
| Net Weight : | 0.01 kg | Weight : | 0.01 kg |
|---|
Pressure
| Max Operating Pressure : | 140.0 Bar |
|---|
Refrigerant
| Refrigerant : | R134a, R410A, R744 |
|---|
Standards
| Approval : | LLC CDC EURO-TYSK, UL |
|---|
Temperature
| Ambient Temperature Range : | -40-60 °C | Max Ambient Temperature : | 60 °C |
|---|---|---|---|
| Max Temperature : | 60 °C | Min Ambient Temperature : | -40 °C |
| Min Temperature : | -40 °C | Temperature Range : | -40-60 °C |
Valves
| CV Value : | 4.872 gal/min | MOPD : | 90.0 Bar |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| electric-regulating-valves-type-ccmt-2-ccmt-8-ccmt-16-ccmt-42-ast-an168586419953en-000601.pdf | Installation Manual | 1.89 MB | |
| electric-regulating-valve-type-ccmt-2-8-and-16-42-ast-ai230186439989en-000901.pdf | Technical Literature | 19.77 MB | |
| manufacturer-s-declaration-danfoss-md-033f0686-ao-ast-id365946903774-0801.pdf | Conformity Declaration | 488.98 KB | |
| brochure-refrigerant-options-now-and-in-the-future-en-ast-ad224586434178en-001001.pdf | Brochures | 2.69 MB | |
| electric-regulating-valve-type-ccmt-2-8-and-16-42-ast-ai230186439989en-001001.pdf | Technical Literature | 17.67 MB | |
| mechanical-safety-certificate-ul-mh7648-ast-id366040919099-0201.pdf | Conformity Declaration | 368.16 KB |
