Description

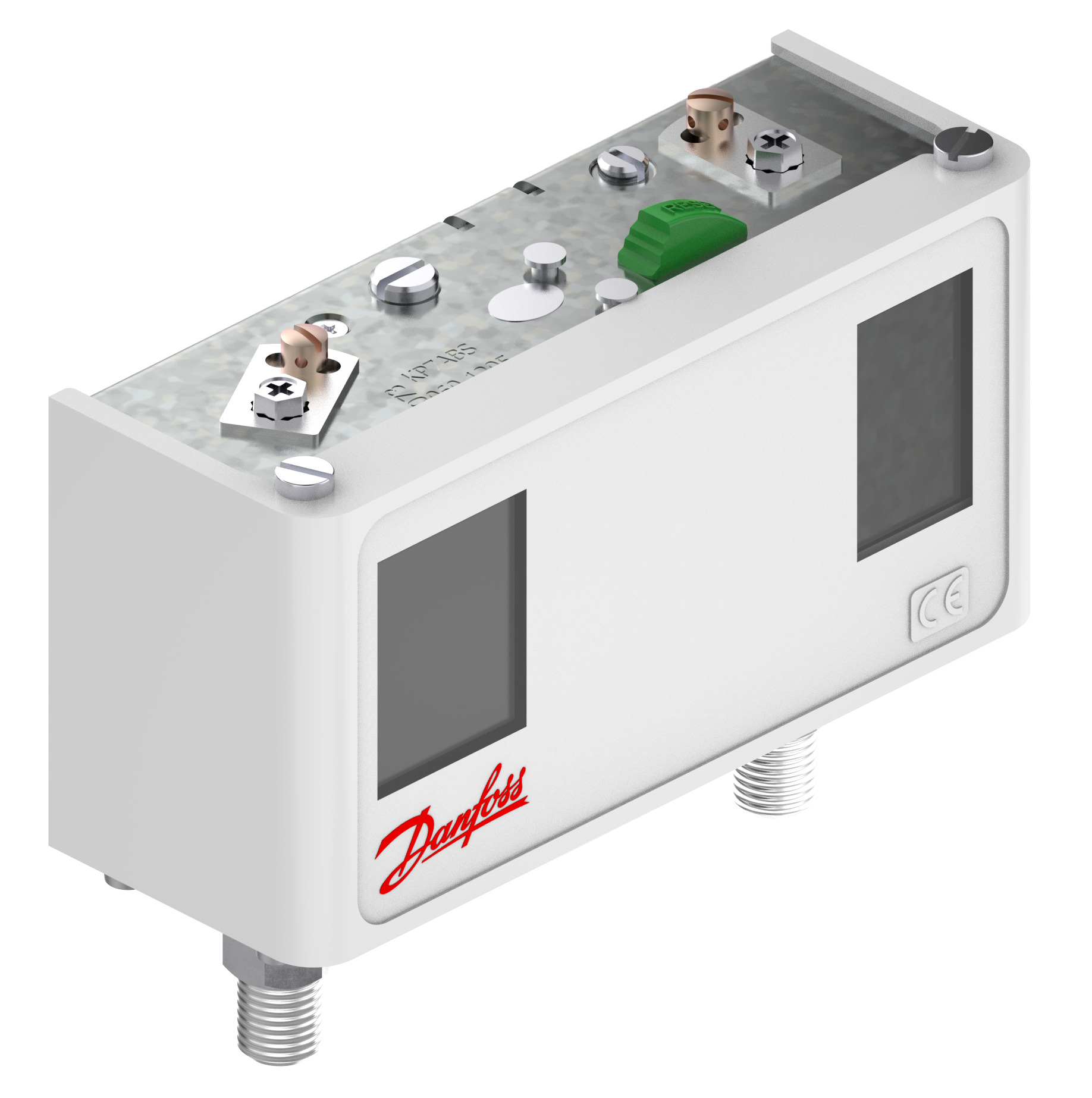

KP7ABS Pressure Switch M/10
KP7ABS Pressure switch M/10
Product number:
060-120566
| Product Group : | Mech Controls - Pressure |
|---|
General
| Product Group : | Mech Controls - Pressure |
|---|
Additional Info
| Additional Info : | Not applicable for liquid line | Family : | KP |
|---|
Connections
| Connection Size : | 0.75 mm | Pressure Connection Type : | M |
|---|
Electrical
| Contact Function : | 2 SPST(NC) | Electric Connection : | Rubber cable gland |
|---|---|---|---|
| Electric Connection Size : | 6-14 mm | IP Class : | IP30 |
General Information
| Model Number : | 060-120566 | Reset Left Side : | Manual Max |
|---|---|---|---|
| Reset Right Side : | Manual Max | Type : | KP7ABS |
Logistical Information
| Commodity Code : | 90322000 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428517102 | Gross Weight : | 0.786 kg |

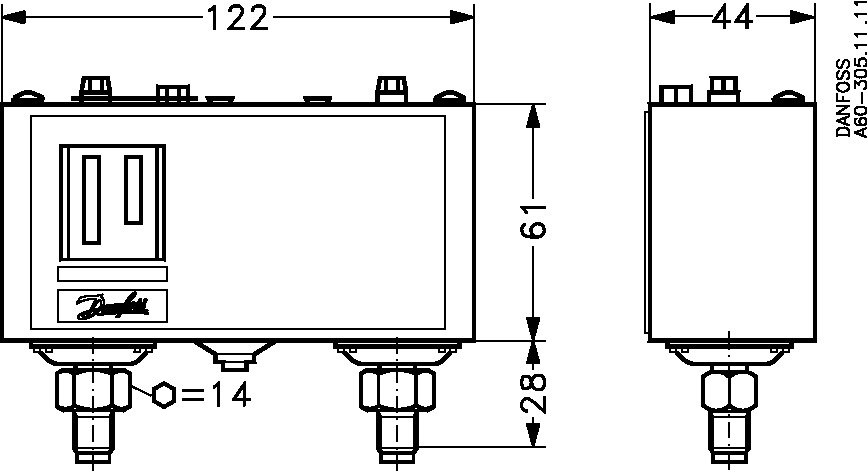

Measurements
| Weight : | 0.74 kg |
|---|
Pressure
| Burst Pressure : | 140.0 Bar | Diff Left Side : | 4.0 Bar |
|---|---|---|---|
| Diff Right Side : | 4.0 Bar | Max Operating Pressure Left Side : | 35.0 Bar |
| Max Operating Pressure Right Side : | 35.0 Bar | Pressure Sensing Elements : | Bellows |
| Regulating Left Side : | 8.0-32.0 Bar | Regulating Right Side : | 8.0-32.0 Bar |
Refrigerant
| Refrigerant : | R22, R113, R124, R134a, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A, R515B, R717 |
|---|
Standards
| Approval : | CCC, CE, CMIM, DNV, EAC, LLC CDC EURO-TYSK, LVD, PED, PZH, RINA, RMRS, RoHS China, UKCA, c UL us UL873, CS C22.2 |
|---|
Temperature
| Ambient Temperature Note : | 80 °C/176 °F for max 120 min | Ambient Temperature Range : | -25-65 °C |
|---|
Valves
| Fluid Group : | 1 |
|---|
Accessory
Product Number: 060-007866
Manufacturer Code: 060-007866
Product Number: 017-420566
Manufacturer Code: 017-420566

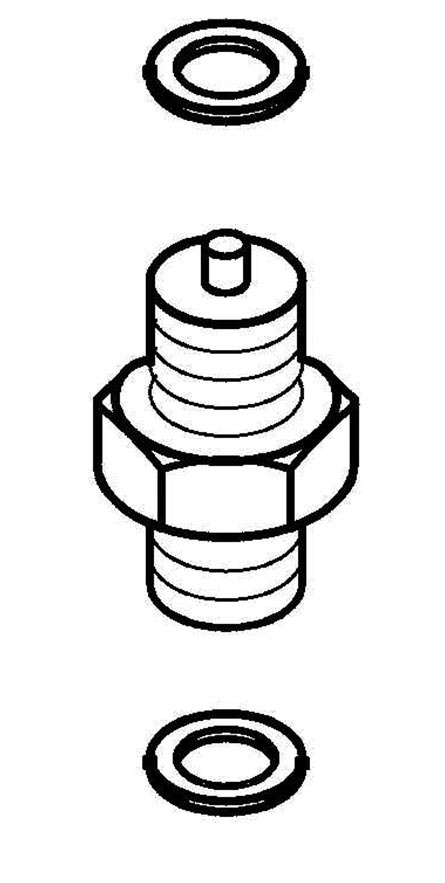

Product Number: 060-010466
Manufacturer Code: 060-010466
