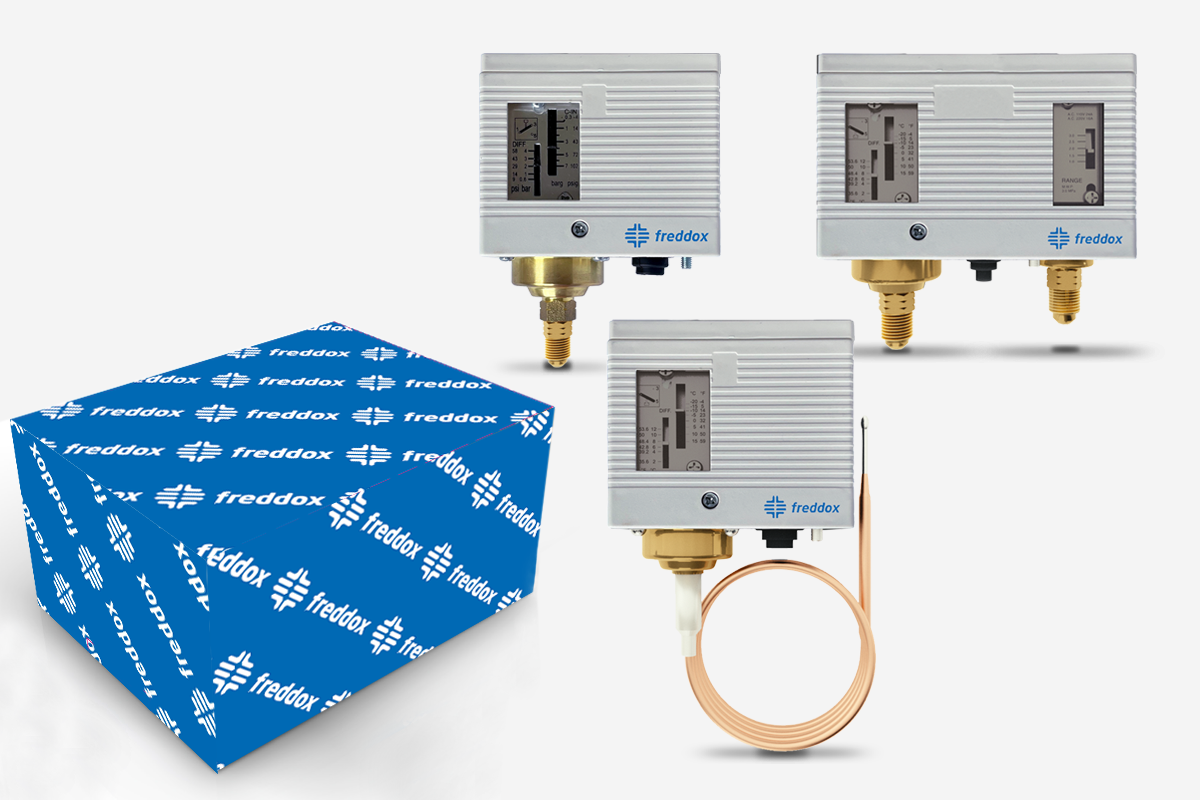

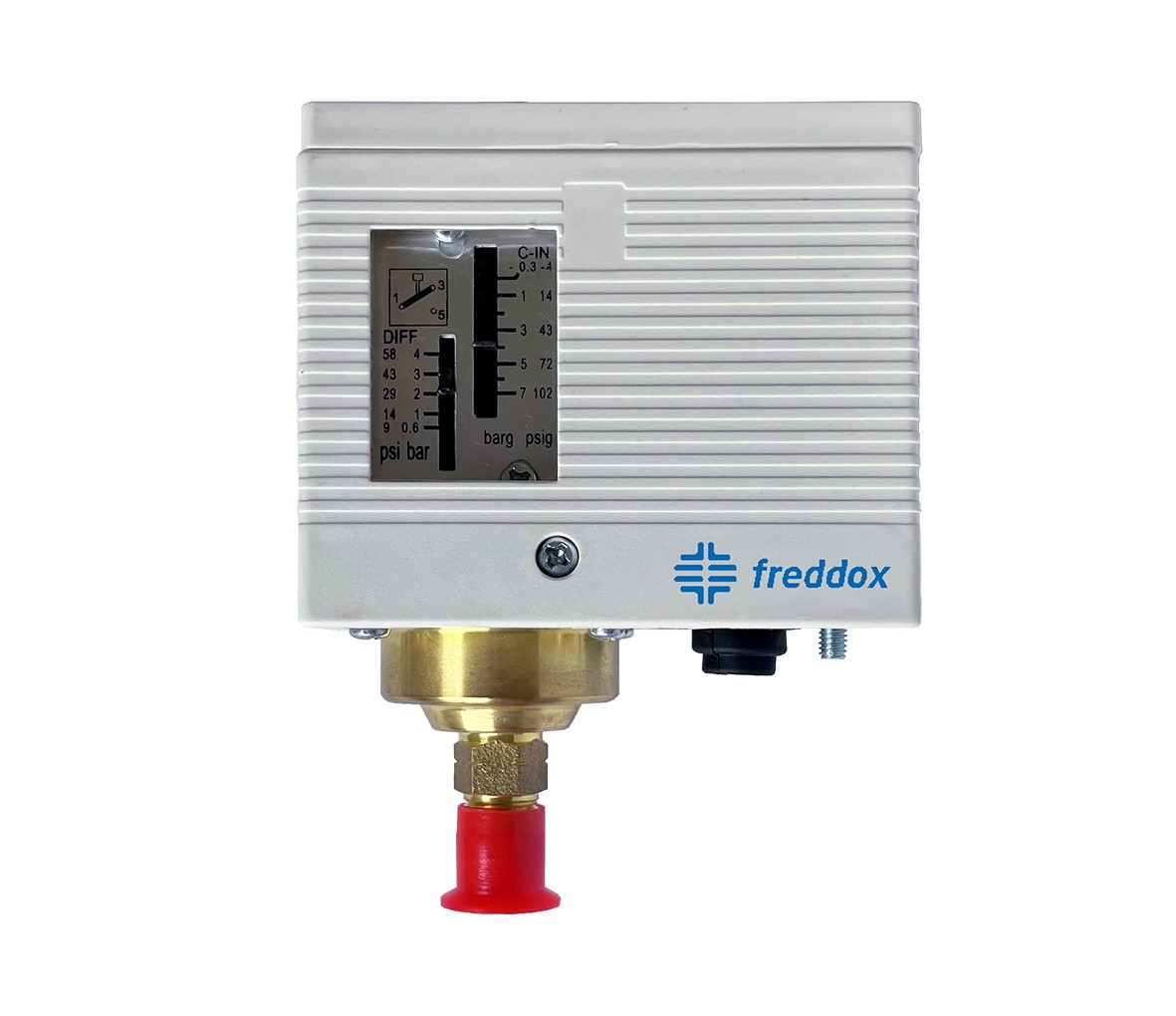

Freddox Pressure Switch HP Auto-Reset

Freddox Pressure Switch HP Auto-Reset
Freddox Pressure Switch HP Auto-Reset
Freddox Pressure Switch HP Auto-Reset
Freddox Pressure Switch HP Auto-Reset
Product number: D16P30A01MS2R1
PLEASE LOGIN TO SEE PRICES
Product Group : Mech Controls - Pressure
Description
Freddox Pressure switch offer a reliable compact electro-mechanical solution to operate safety as control functions on Refrigeration installation up to 3HP. They can be use for any pressure management, as for Fan control, Solenoid valves management or Compressor management , The Freddox pressure switches are equipped with SPDT contacts for an easier wiring and with standard male fittings for a faster connection.
Product Group : Mech Controls - Pressure
Family : Single Pressure Control
Connection Size : 1/4 in Connection Type : Male 7/16-20 UNF
Contact Function : SPDT Contact Rating : 16A
IP Class : IP44
Reset : Auto
Depth : 48.7 mm Height : 100.5 mm
Width : 80 mm
Burst Pressure : 140 Bar, 2030 Psi Diff : 2-8 Bar, 29-116 Psi
Diff Type : Adjustable Differential Pressure : 2-8 Bar, 29-116 Psi
Differential Pressure Max : 8 Bar, 116 Psi Differential Pressure Min : 2 Bar, 29 Psi
Max Pressure : 35 Bar, 507 Psi Pressure Range : 7-31 Bar
Max Ambient Temperature : 55 °C Min Ambient Temperature : -40 °C
File name Document Type Extension Size
freddoxaus---pressure-switches-ast-4064939.pdf Brochures pdf 1.48 MB
