Description
ICS3 50 50 DIN

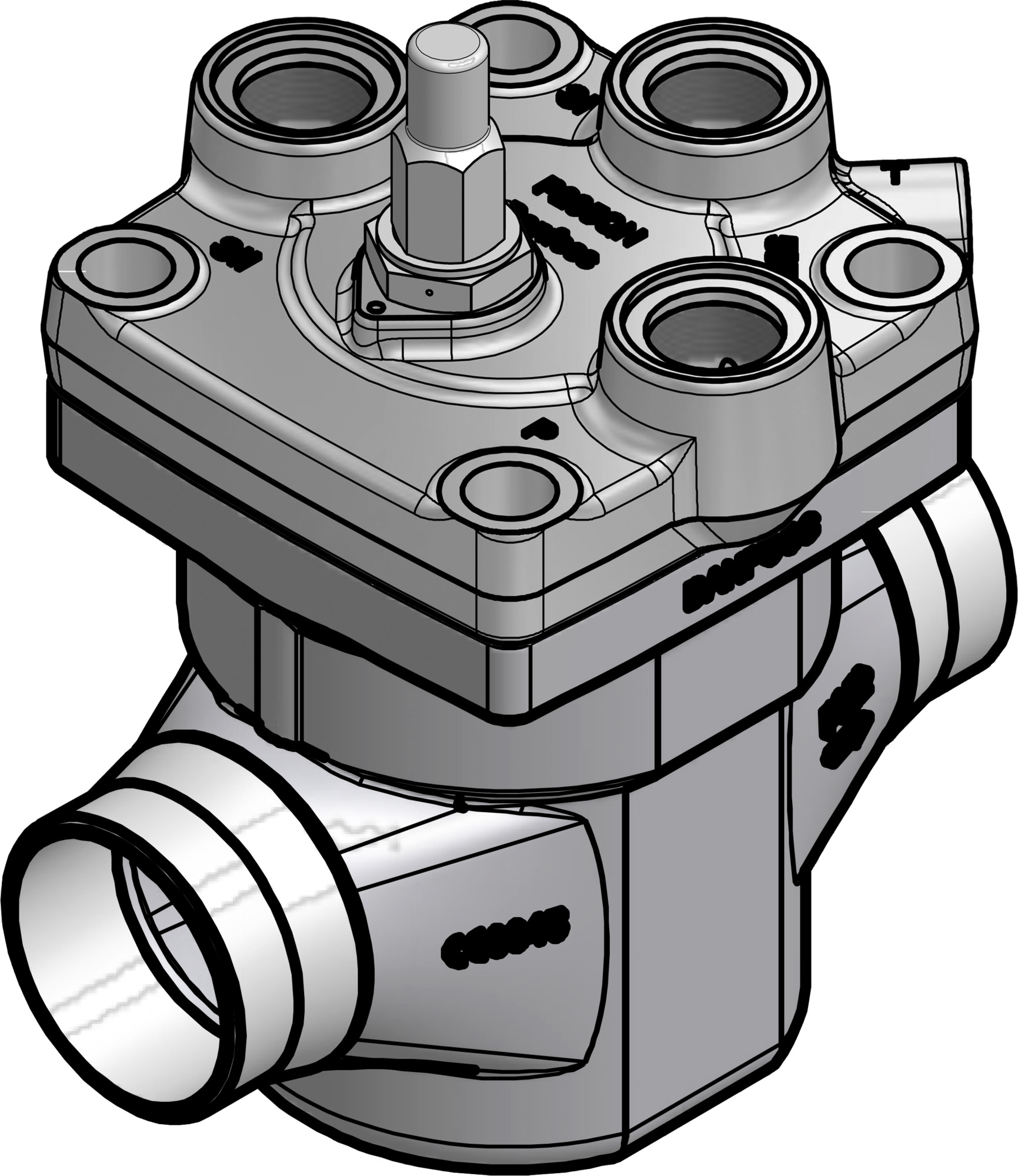

Danfoss PM-ICS3-50 valve
Product number:
PM-ICS3-50
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
General
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
Additional Info
| Additional Info : | Coils not included | Family : | ICS; ICS + CVC; ICS + CVP; ICS + CVPP; ICS + EVM; ICS ext |
|---|
Connections
| Inlet Connection Size : | 2 in, 50.0 mm | Inlet Type : | Butt weld |
|---|---|---|---|
| Outlet Connection Size : | 2 in, 50.0 mm | Outlet Type : | Butt weld |
General Information
| Type : | ICS3 50 |
|---|
Kv Values
| Kv Value : | 44.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818073 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428235600 | Gross Weight : | 11.1 kg |
Material
| Body Material : | Steel | Connection Material : | Steel |
|---|
Measurements
| Net Weight : | 9.97 kg | Weight : | 9.97 kg |
|---|
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R152a, R227ea, R236fa, R245fa, R290, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R717, R744, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK, TÜV, UL |
|---|
Temperature
| Max Temperature : | 120 °C | Min Temperature : | -60 °C |
|---|---|---|---|
| Temperature Range : | -60-120 °C |
Valves
| CV Value : | 51.040 gal/min | Direction : | Straightway |
|---|---|---|---|
| Flow Direction Indicator : | Embossed 1-way arrow | Fluid Group : | 1 |
| Opening Configuration : | Closed (delta p=0 bar); Full open (delta p≥0.2 bar); PropOpen (delta p=0.07-0.2bar) | Valve Operation : | Pilot operated |
| Valve Version : | Standard version |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| data-sheet-pilotoperated-servo-valve-type-ics-ast-ai241186442033en-001401.pdf | Technical Literature | 8.73 MB | |
| manufacturer-s-declaration-danfoss-md-033f1196-01-ast-id410840939200-0201.pdf | Conformity Declaration | 301.63 KB | |
| eu-uk-declaration-danfoss-eu-uk-033f0688-aj-ast-id365934584249-0701.pdf | Conformity Declaration | 315.47 KB | |
| brochure-one-flexline-platform-multiple-options-icv-icf-svl-en-ast-ad154286418480en-000301.pdf | Brochures | 1.11 MB | |
| brochure-pm-phase-out-and-conversion-to-icv-flexline-platform-en-ast-ad142786415849en-000201.pdf | Brochures | 482.3 KB | |
| brochure-reduce-lifecycle-costs-increase-savings-and-design-freedom-the-icv-control-valve-member-of-the-flexline-family-en-ast-ad156786420007en-000501.pdf | Brochures | 4.62 MB |

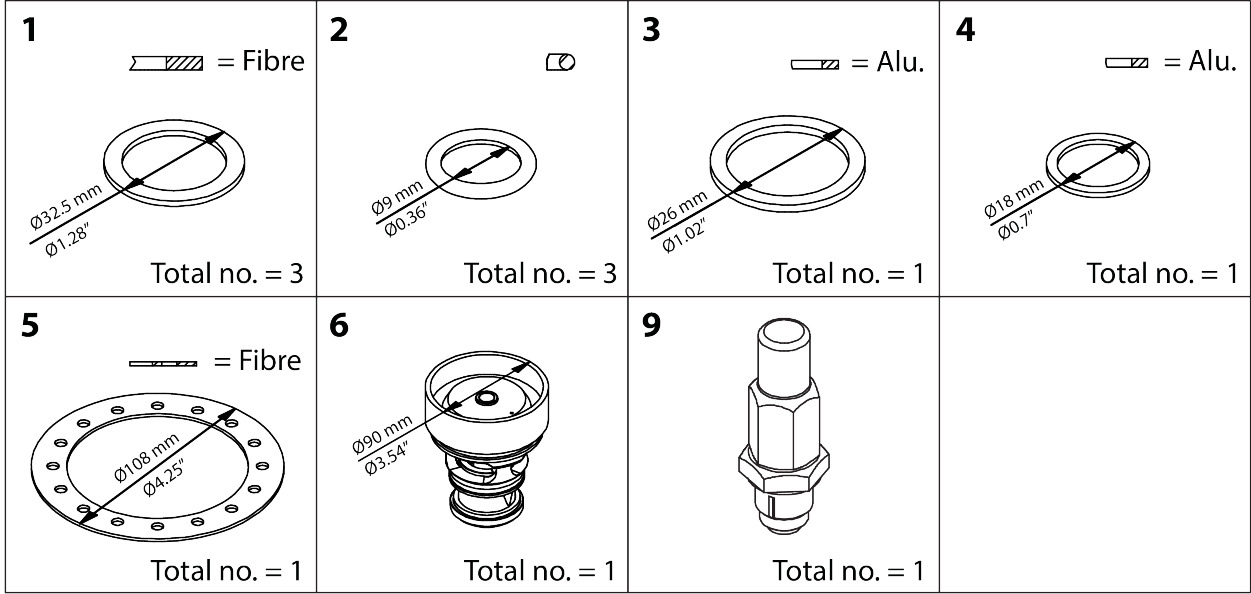

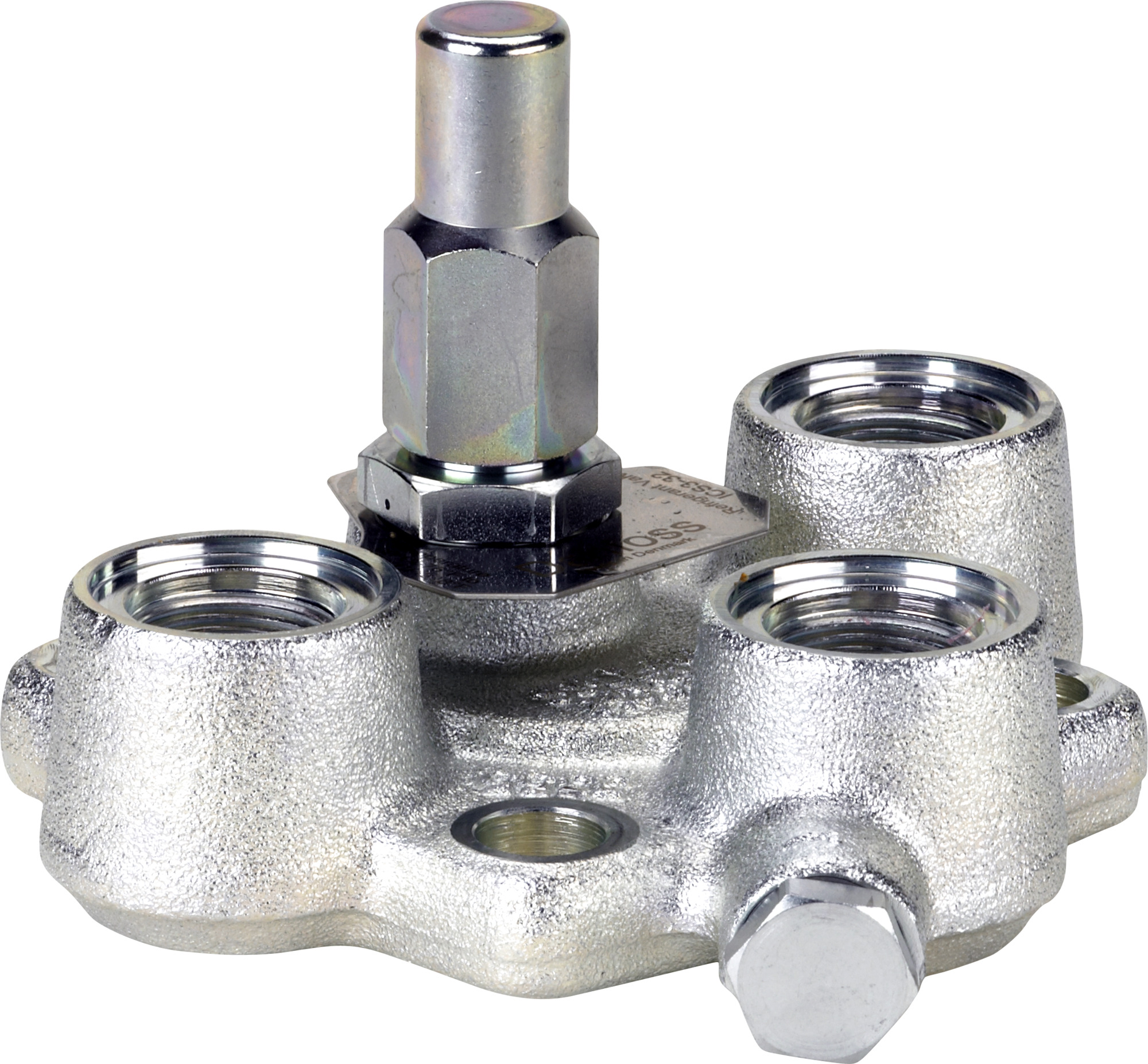

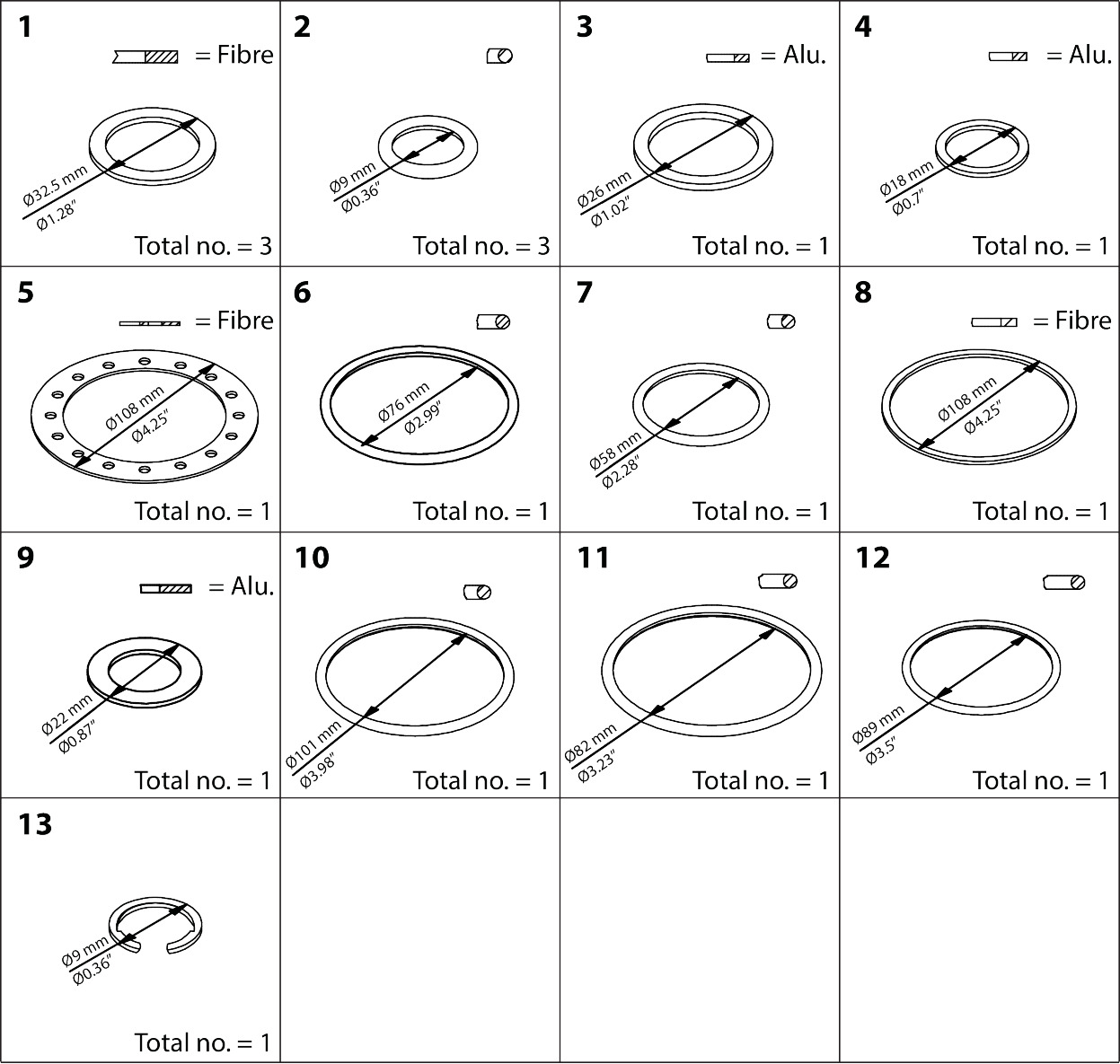

Spare Part
