Description

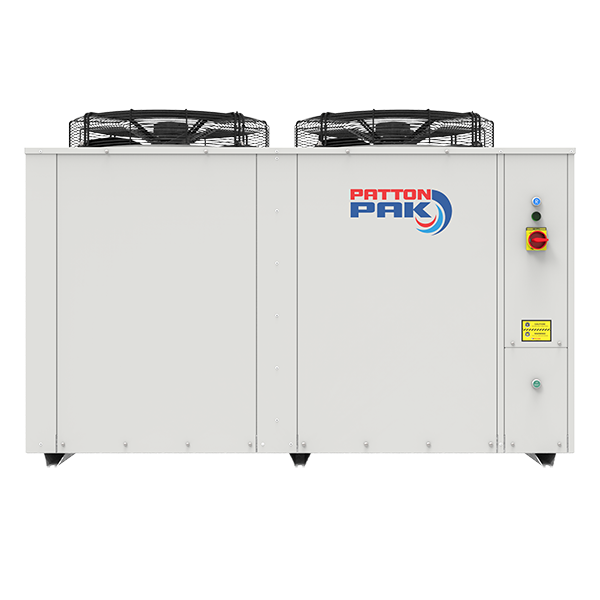

PCC400 Patton Pak Cond Unit
Product number:
PP1050
| Product Group : | Outdoor Unit - Patton Pak Hermetic |
|---|
General
| Product Group : | Outdoor Unit - Patton Pak Hermetic |
|---|
Additional Info
| Family : | 1014-30410004 |
|---|
Compressor
| Compressor Model : | CS27K6E-TFD | Displacement : | 92.4 cc |
|---|---|---|---|
| Power Supply Compressor : | 380-420/3/50 V/Ph/Hz |
Connections
| Liquid Line Connection : | 12.7 mm | Suction Connection Size : | 22.22 mm |
|---|

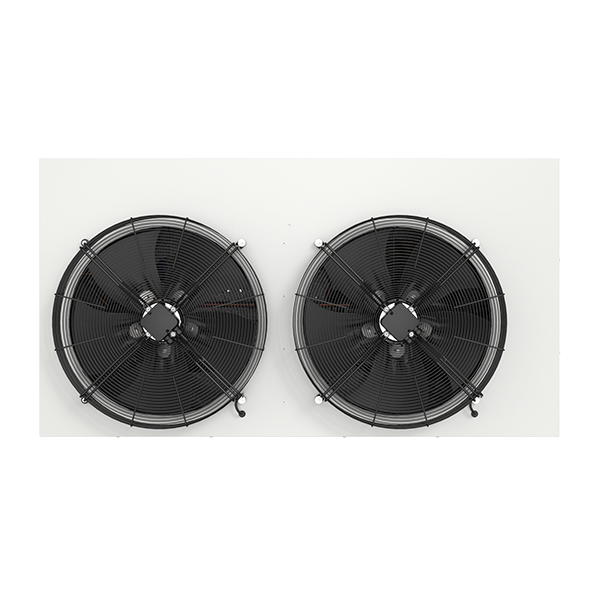

Fan
| Fan Diameter : | 350 mm | Number Of Fans : | 2 |
|---|
General Information
| Receiver Volume : | 6.2 kg |
|---|
Measurements
| Height : | 814 mm | Net Weight : | 122 kg |
|---|
R134A Performances
| R134a Nominal Capacity -5°C : | 5620 W |
|---|
R404A Performances
| R404A Nominal Capacity -25°C : | 4300 W |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| wd302-ast-2274819.pdf | Technical Literature | 288.35 KB | |
| pcc-pmtz-pem-en-ast-1382671.pdf | Technical Literature | 4.07 MB |
